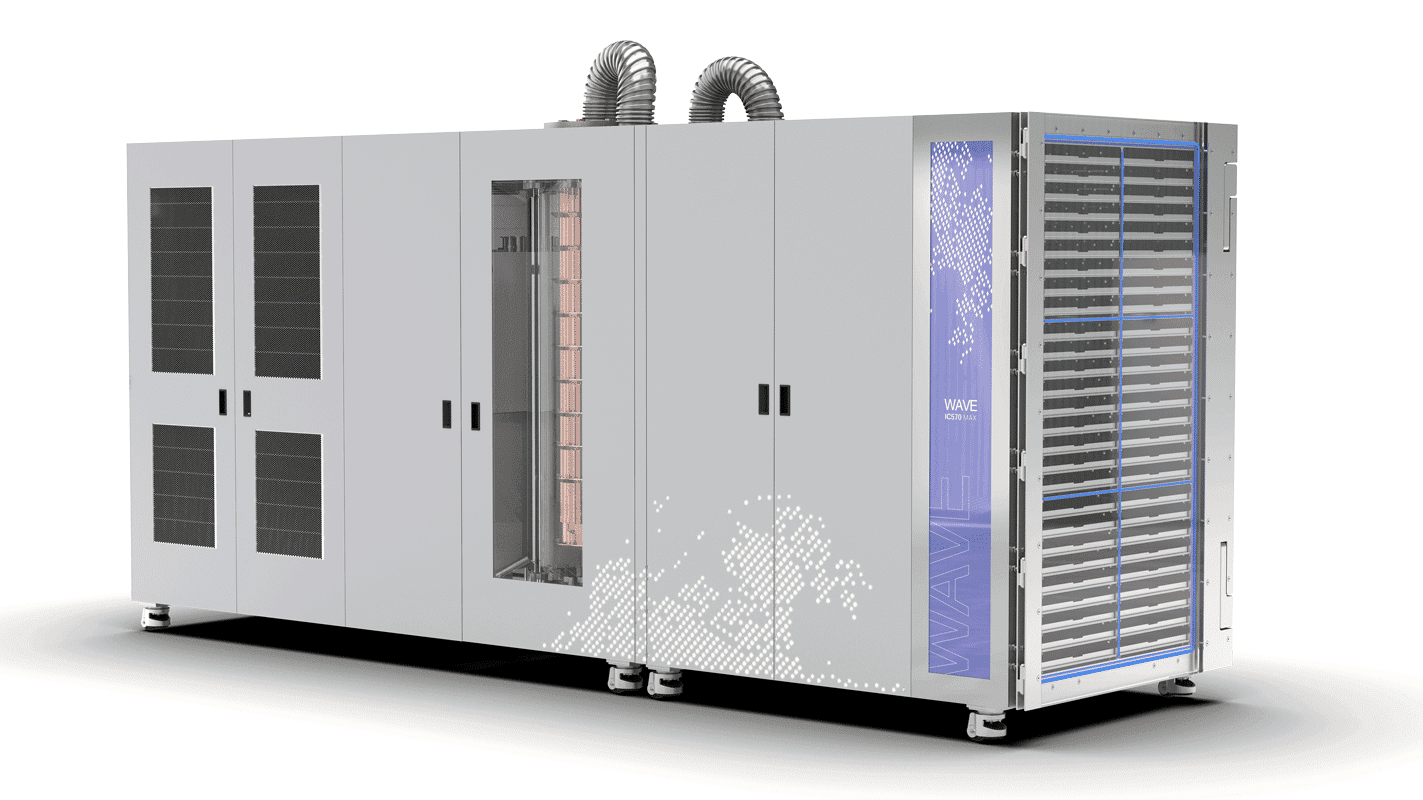

    WAVE

    IC570MAX

    starting price

    198000€

    Extraction Capacity

    25 Kg/h

    Loading Volume

    500Kg

    Energy Consumption

    2KW/Kg H2O

    198000 EUR

    The IC570MAX uses Siemens Simatic as PLC. Our software is easy to use and allows flexible programming of the drying process, every parameter can be adjusted. Drying can be done in up to 10 cycles and reported statistics give you insight into the effectiveness of the drying process to optimize your end result.

    key features
    icon
    Each shelf individually temperature controlled
    icon
    Square chamber for minimal footprint
    icon
    Heat transfer avoidance for loading to prevent energy loss
    icon
    Coldtrap cleaning system available
    icon
    Removable shelves to access complete chamber for cleaning
    icon
    2 alternating cold traps for best energy and time performance
    icon
    Easy to transport and move anytime
    icon
    Lowest weight, energy use and footprint of all machines on the market
    icon
    Remote surveillance and assistance through WAVE iot SIM Network
    icon
    Large extra screen for help and information
    icon
    All metal shelves
    icon
    ABB safety switches for each shelve
    icon
    Integrated pump
    icon
    Worldwide site service
    icon
    24h WhatsApp support
    icon
    Siemens controls, ABB components, Staubli connectors, EBM Papst fans, Phoenix Contacts power supply
    icon
    Ice thickness detection on the coldtraps using AI and machine learning by Siemens simatic

    TECHNICAL DETAILS

    Quality

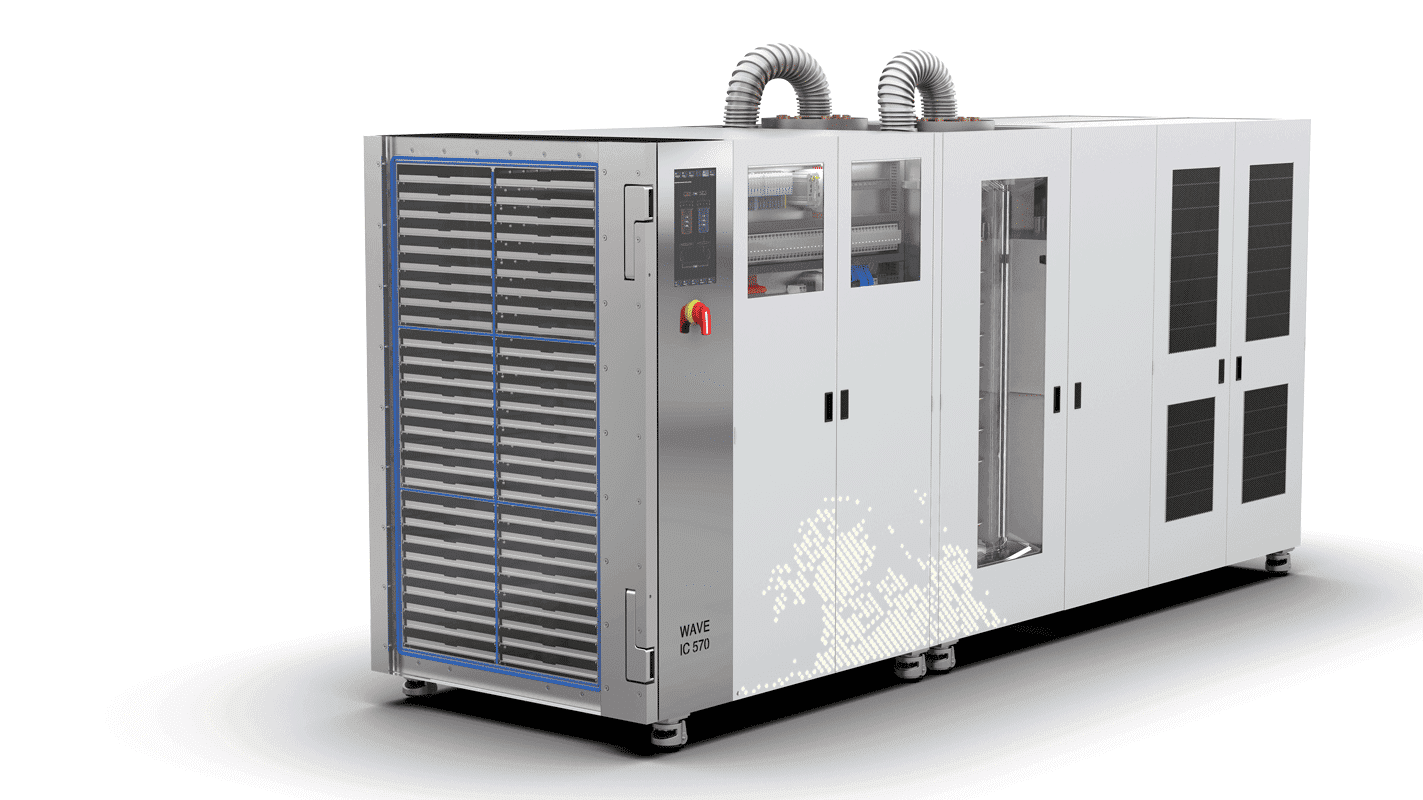

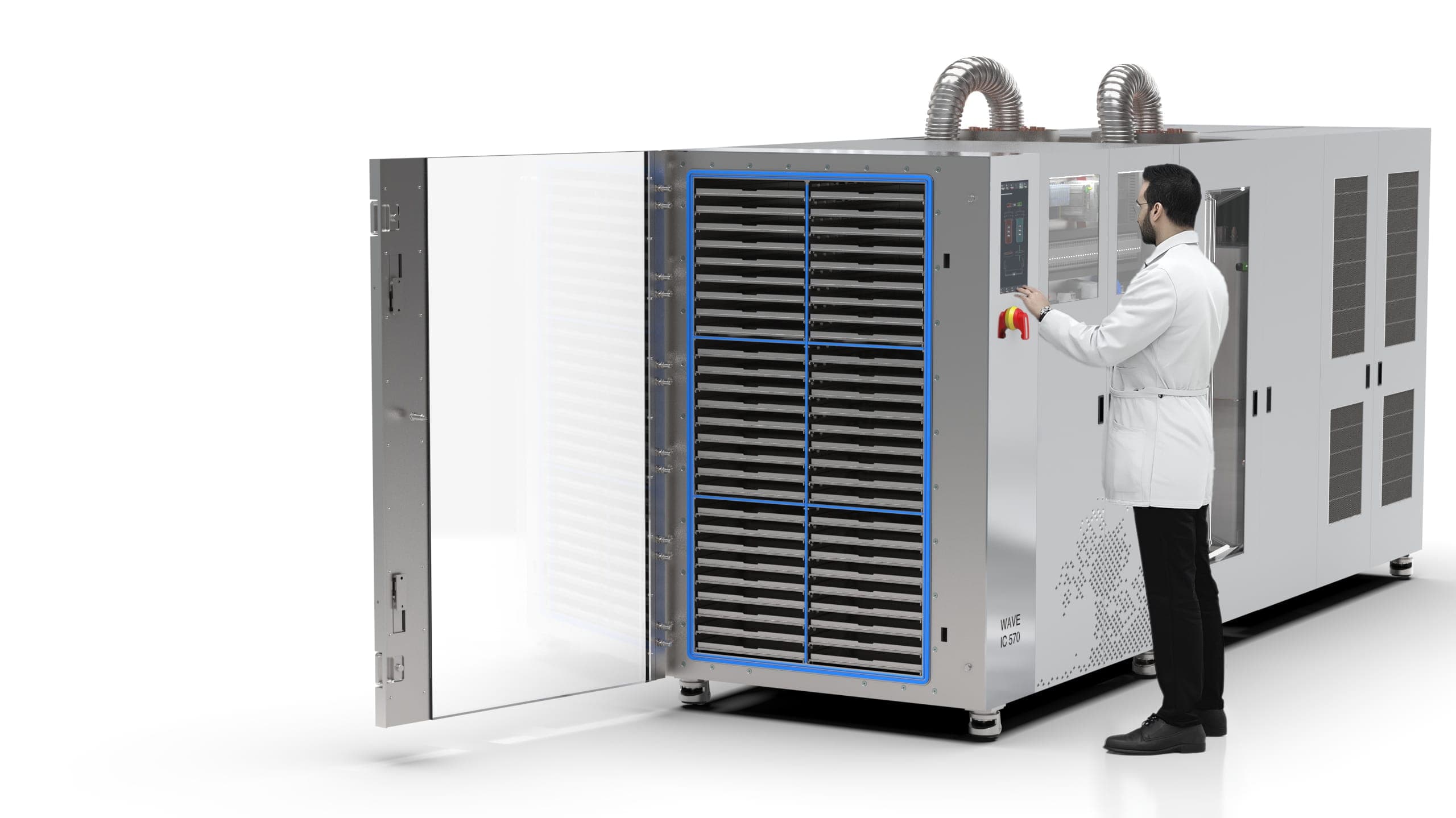

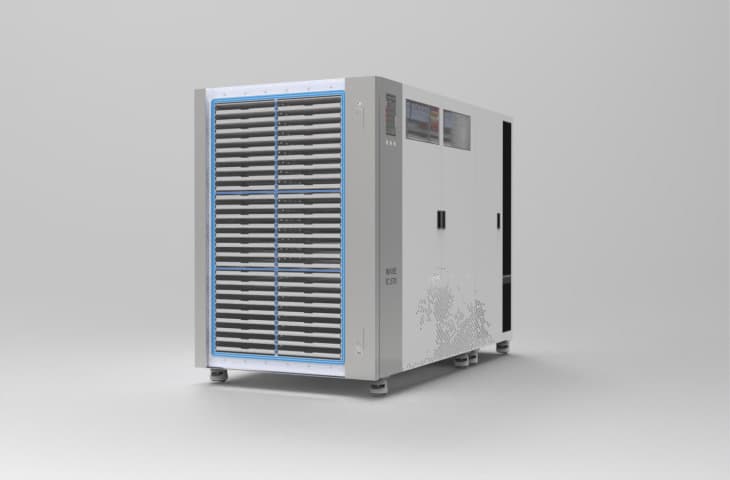

    The IC570 is the most compact machine in its class with a footprint of only 360cm x 170cm x 115cm and a loading volume of up to 500Kg.

    Service

    Wave is headquartered in Austria. We supply and support customers throughout Europe. The IC570 is equipped with remote maintenance. Spare parts are always available. We also have a service center in the US which services our US customers, as well as in India, Dubai and Spain.

    Energy efficient

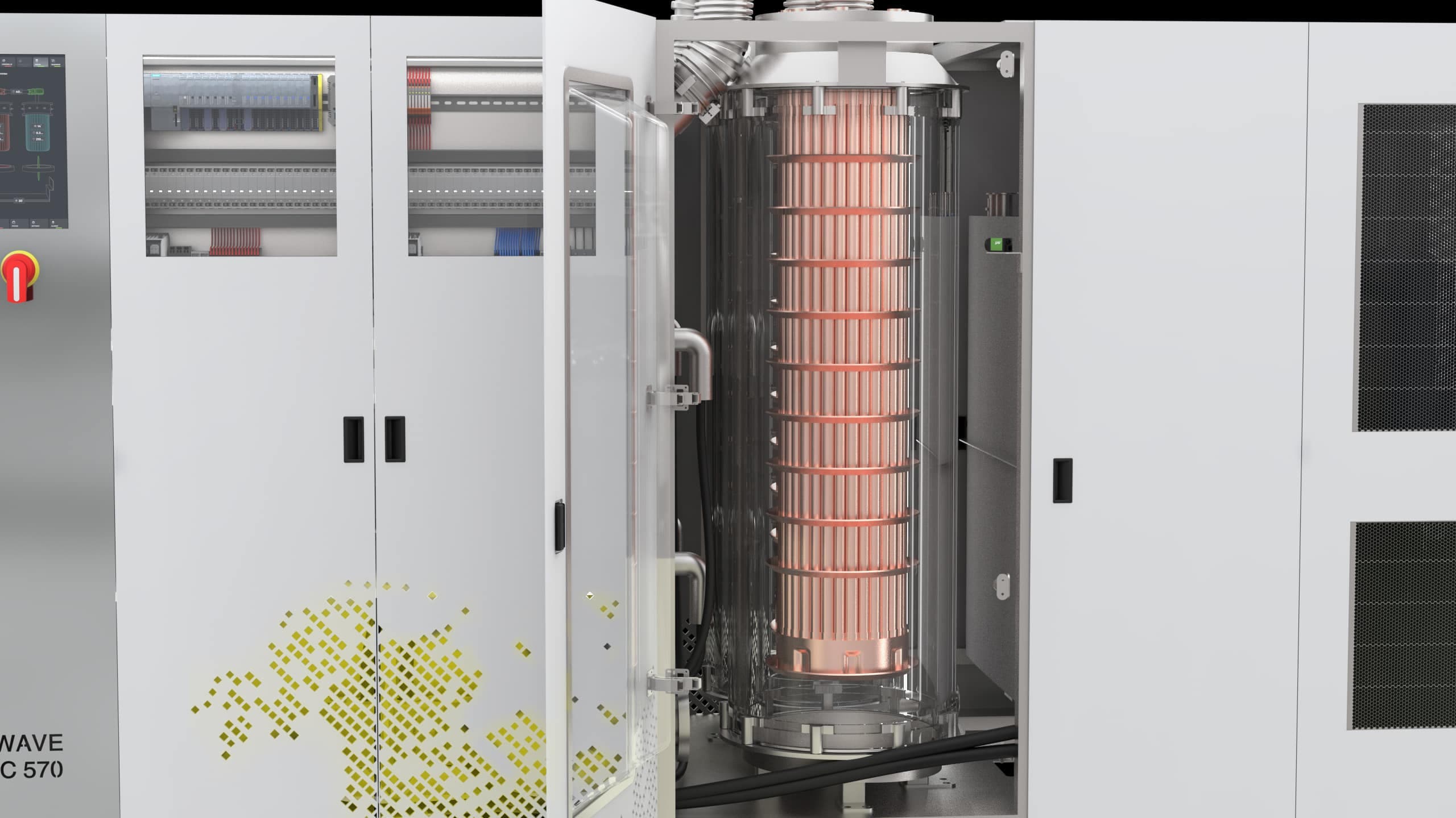

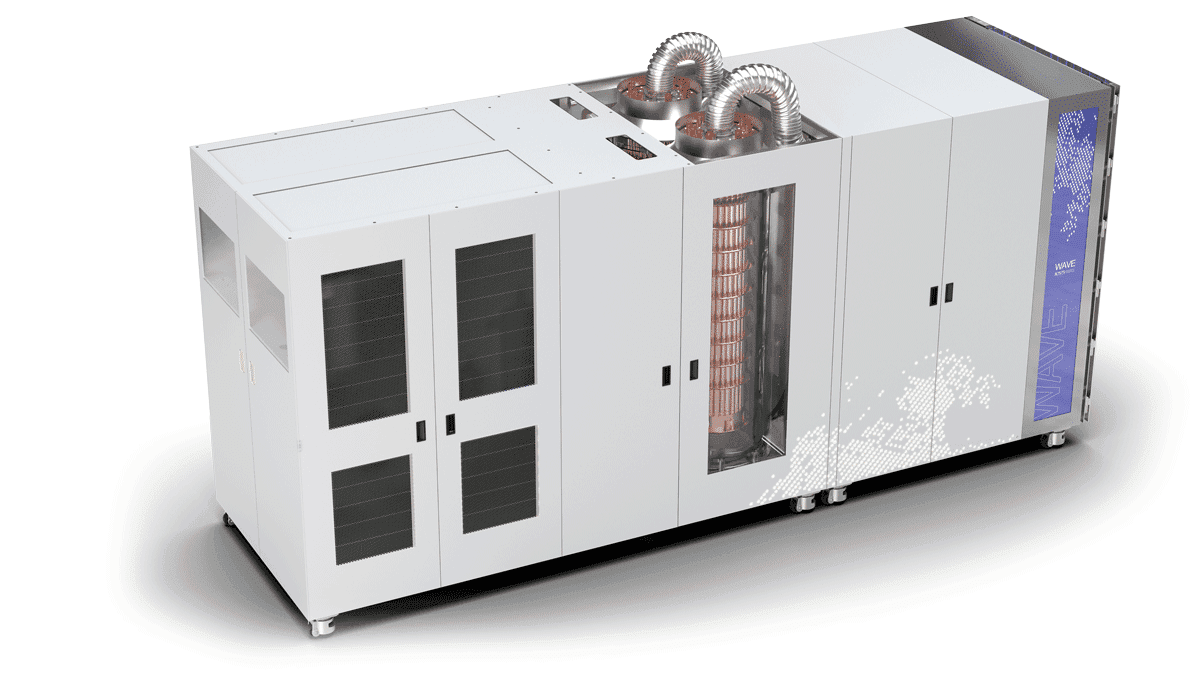

    The IC570 uses a dual chamber coldtrap that enables infinite drying capacity and best use of energy, while one tube is cooling and collecting the water the other is defrosting using the excess energy of the cooling process, on top there is no defrost time loss anymore.

    Costs

    Our goal is to offer the best price-performance ratio for freeze dryers. The IC570 is available from 198.000 EUR, exlcuding vacuum pump.

    Compliance and Performance Solutions

    Safety Package (mandatory in the EU, Australia, NZ, Norway, Switzerland, Canada and US)

    +7900

    Performance Package 17KW

    +8500

    Performance Package 27,4 KW

    +21500

    Cooling Configuration and Remote Condenser Solutions

    Water Cooling

    +2200

    Condenser Remote Placement Preparation

    +2200

    NITROGEN

    No nitrogen generator

    +0

    Nitrogen generator for 1x flooding / 24h

    +7200

    Nitrogen generator for 2x flooding /24h

    +9150

    DRAWERS & HEATERS

    All drawers in special steel 316

    '+2300

    All drawers and shelves in special steel 316

    +4400

    SCIENTIFIC EXTRAS

    Feedthrough for USB connection

    +350

    Feedthrough for additional 4 cables 0,75mm2

    '+160

    Feedthrough for additional 8 cables 0,75mm2

    '+260

    Feedthrough for additional 12 cables 0,75mm2

    '+380

    Extra 2 PT100 temperature sensors

    '+120

    Extra 4 PT100 temperature sensors

    '+200

    Extra 8 PT 100 temperature sensors

    '+340

    Addons

    No add ons

    '+0

    Set of 102 extra trays anodized aluminium (600x400mm)

    '+4700

    Set of 102 extra trays ss304 (600x400mm)

    '+7800

    Traycart for 104 trays for faster loading & unloading

    +7700

    Pump

    New Edwards Drystar 80

    +17500

    New Edwards Drystar 110

    '+27300

    4 x Wave 35m³/h scroll vacuum pump

    +19500

    Transport & more

    Express order within 5 months

    '+11600

    Super express order within 3 months

    '+22200

    Full Service Custom Brokerage for USA

    Warranty & Service & Remote Packs

    1 Year extra warranty

    '+4900

    2 Years extra warranty

    '+9000

    3 Years extra warranty

    '+13500

    On site introduction to the machine (Europe & USA)

    '+6750

    On site introduction to the machine (Asia, Africa, South America, Middle east)

    '+8800

    TECHNICAL DATA

    Extraction capacity

    25 kg/h (infinite)

    Drawer loading volume

    1480 L

    Surface (8 drawers)

    3.85 m2

    Surface tray

    600 mm x 400 mm (Euro Standard)

    Compartments

    102

    Tray material

    aluminum or stainless steel

    Cooling capacity

    No cooling capacity

    Heating capacity

    Up to 400 watt/tray

    Current load

    30 kW, can be lowered to 9 kW

    Condensation temperature

    -40 C

    Maximum vacuum

    10 mTorr

    Time to max. vacuum

    40 minutes

    Pump

    2 x M48 Wave Oil Pump

    Evacuate

    Electromagnetic

    Door closing mechanism

    Manual

    De-icing

    Dual chamber

    De-icing time

    0 minutes

    Monitor

    10" HD color touchscreen

    Control system

    Siemens Simatic PLC + KINCO + WAVE

    Connectivity

    Ethernet

    Door

    40 mm acrylic

    Vacuum chamber

    Anodized aluminium or stainless steel

    Valkuum chamber surface

    Hard anodized 25u

    Front panel

    Powder-coated

    Total weight

    1750 KG

    Electricity EU Version

    400V/3/N

    Electricity US Version

    240V/1/N (120V/2/N)

    Ambient temperature range

    +17°C to +22°C (+10°C with compressor and pump heater)

    Size (L x W x H)

    1700 mm x 2200 mm x 1150 mm

    download IC570MAX technical description

    You may also like

    IC550

    starting price

    €98500

    IC550 complete with 60 trays, each 400x 600 mm in size, with infinite drying capacity and a loading capacity of up to 240 Kg.

    Extraction Capacity

    7 kg/h

    Chamber

    240 Kg

    Energy Consumption

    6.8 kW

    98500EUR
