    WAVE

    IC550

    starting price

    98500€

    Extraction Capacity

    7 kg/h

    Chamber

    240 Kg

    Energy Consumption

    6.8 kW

    98500 EUR

    The IC550 uses Siemens Simatic as PLC and our own sensor and switching modules designed for freezedrying. Our software is easy to use and allows flexible programming of the drying process, every parameter can be adjusted. Drying can be done in up to 10 cycles and reported statistics give you insight into the effectiveness of the drying process to optimize your end result.

    key features
    icon
    Each shelf individually temperature controlled
    icon
    Easy to transport and move anytime
    icon
    Lowest weight, energy use and footprint of all machines on the market
    icon
    Remote surveillance and assistance through WAVE iot SIM Network
    icon

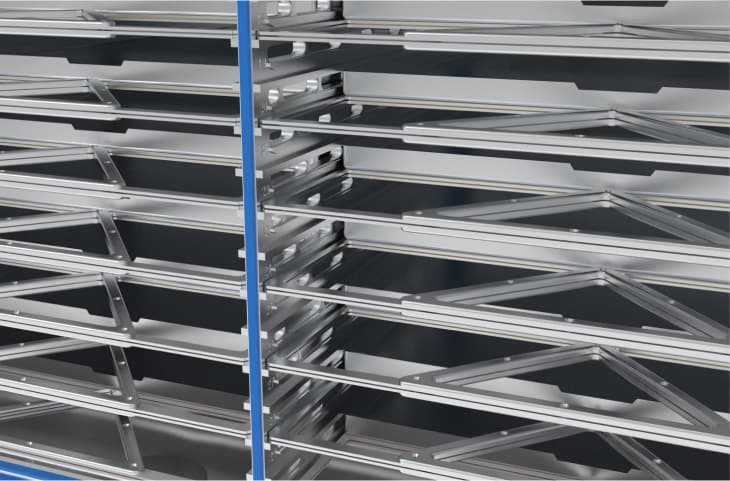

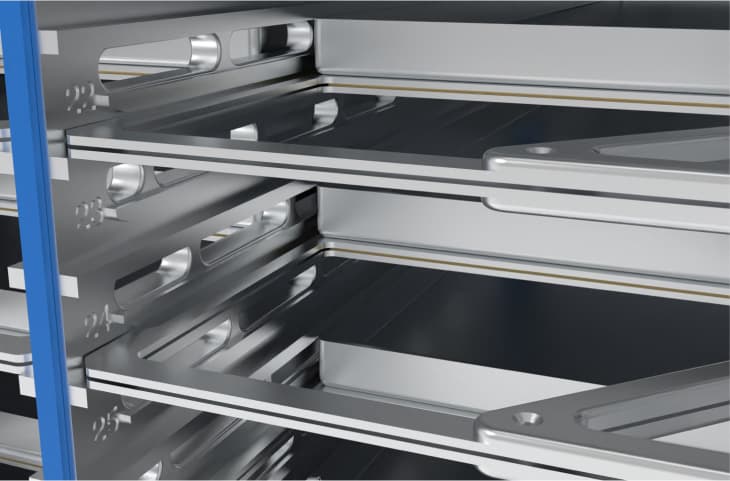

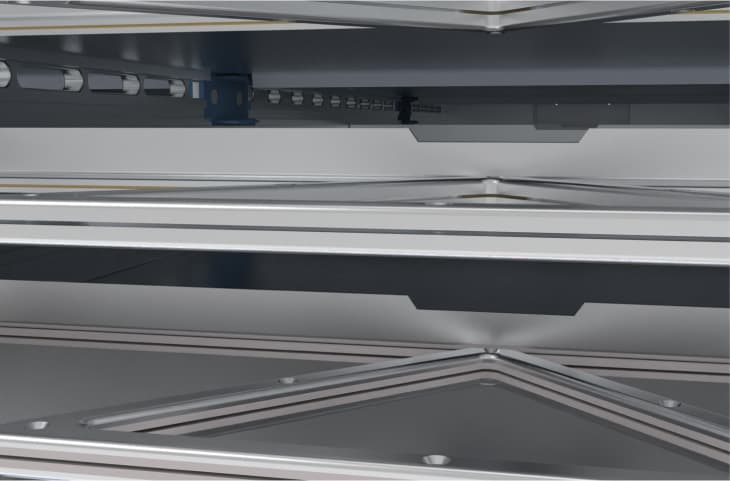

    All metal shelves
    icon
    ABB safety switches for each shelve
    icon
    Worldwide site service
    icon
    24h WhatsApp support

    TECHNICAL DETAILS

    Quality

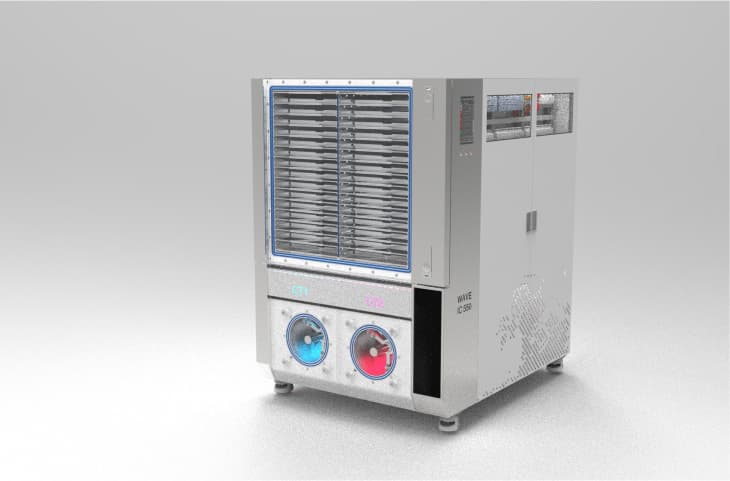

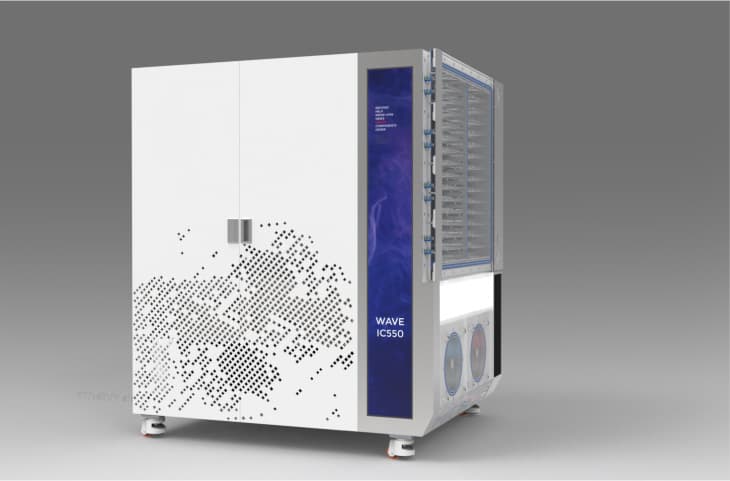

    The IC550 is the most compact machine in its class with a footprint of only 120 x 140 x 170 cm and a loading volume of up to 240 Kg.

    Service

    Wave is headquartered in Austria. We supply and support customers throughout Europe. The IC550 is equipped with remote maintenance. Spare parts are always available. We also have service centers in the US, Dubai, Spain and India.

    Modularity

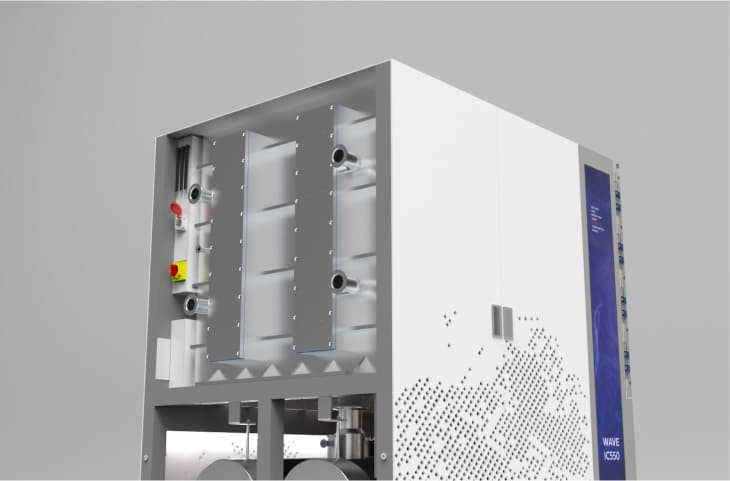

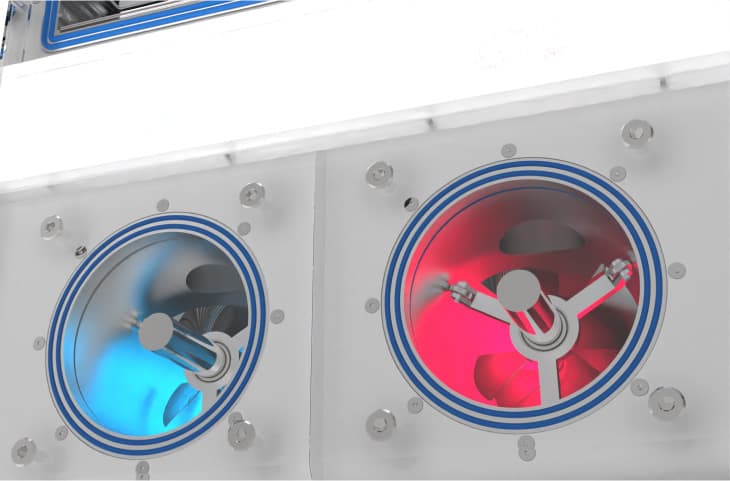

    The IC550 uses a dual chamber coldtrap that enables infinite drying capacity and best use of energy, while one tube is cooling and collecting the water the other is defrosting, using the excess energy of the cooling process, additionaly there is no defrost time loss anymore.

    Costs

    Our goal is to offer the best price-performance ratio for freeze dryers. The IC550 is available from $110,000.

    NITROGEN

    No nitrogen generator

    +0

    Nitrogen generator for 1x flooding / 24h

    +7200

    Nitrogen generator for 2x flooding /24h

    +9150

    DRAWERS & HEATERS

    All heaters made in Kapton

    +0

    Equip all drawers with plugs to be removable

    +0

    All drawers in special steel 316

    '+2300

    All drawers and shelves in special steel 316

    +6400

    SCIENTIFIC EXTRAS

    Feedthrough for USB connection

    +350

    Feedthrough for additional 4 cables 0,75mm2

    '+160

    Feedthrough for additional 8 cables 0,75mm2

    '+260

    Feedthrough for additional 12 cables 0,75mm2

    '+380

    Extra 2 PT100 temperature sensors

    '+120

    Extra 4 PT100 temperature sensors

    '+200

    Extra 8 PT 100 temperature sensors

    '+340

    Addons

    No add ons

    '+0

    20 Liter of Wave 19Q oil for vacuum oil pumps

    '+350

    Set of 60 extra trays anodized aluminium (600x400mm)

    '+2700

    Set of 60 extra trays ss304 (600x400mm)

    '+4800

    Pump Connection

    Standard connection with 700mm flexible steel hose

    '+0

    Upgrade to 1000mm flexible steel hose KF50

    '+200

    Upgrade to 1500mm flexible steel hose

    '+220

    Pump

    Upgrade to new Edwards Drystar 80

    +16500

    Upgrade to new Edwards Drystar 110

    '+22300

    Upgrade to new 3x Wave M48 48m2 oil pump

    +3900

    Upgrade to Edwards XDS46i scroll pump (refurbished)

    +8900

    No pump

    '-4200

    Replace pump with an automated valve

    '-980

    Transport

    Express order within 8 weeks

    '+8600

    Super express order within 5 weeks

    '+17200

    Full Service Custom Brokerage for USA

    Warranty & Service & Remote Packs

    1 Year extra warranty

    '+4900

    2 Years extra warranty

    '+9000

    3 Years extra warranty

    '+13500

    On site introduction to the machine (Europe & USA)

    '+890

    On site introduction to the machine (Asia, Africa, South America)

    '+1790

    Small service pack

    '+380

    Full service pack including tools

    '+3850

    3RD PARTY RECIPES

    Drypro all berries programm

    120

    Quickdry for smoothies and pastes

    50

    TECHNICAL DATA

    Extraction capacity

    15 kg/h (infinite)

    Chamber room

    980 L

    Surface

    3.85 m2

    Cooling capacity

    No cooling capacity

    Heating capacity

    Up to 400 watt/tray

    Current load

    30 kW, can be lowered to 9 kW

    Condensation temperature

    -40 C

    Maximum vacuum

    10 mTorr

    De-icing

    Dual chamber

    De-icing time

    0 minutes

    Monitor

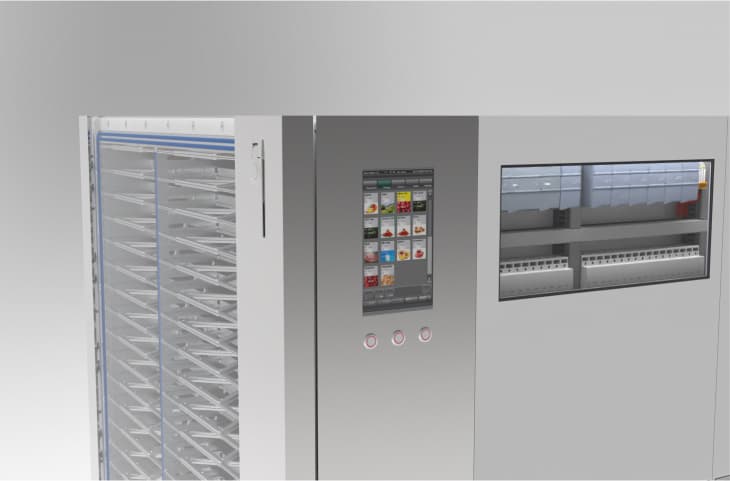

    10" HD color touchscreen HMI

    Control system

    Siemens Simatic PLC + KINCO + WAVE

    Connectivity

    Ethernet

    Door

    40 mm acrylic

    Vacuum chamber

    Anodized aluminium or stainless steel

    Valkuum chamber surface

    Hard anodized 25u

    Front panel

    Powder-coated

    Total weight

    1120 KG

    Electricity EU Version

    400V/3/N

    Electricity US Version

    240V/1/N (120V/2/N)

    Ambient Temperature

    +17°C to +22°C (+10°C with compressor and pump heater)

    Size (L x W x H)

    1700 mm x 1500 mm x 1150 mm

    download IC550 technical description
