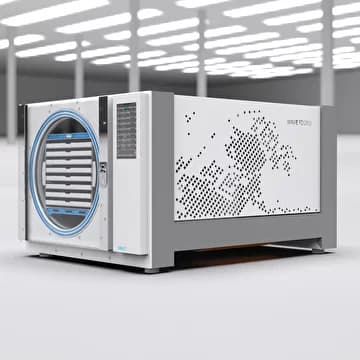

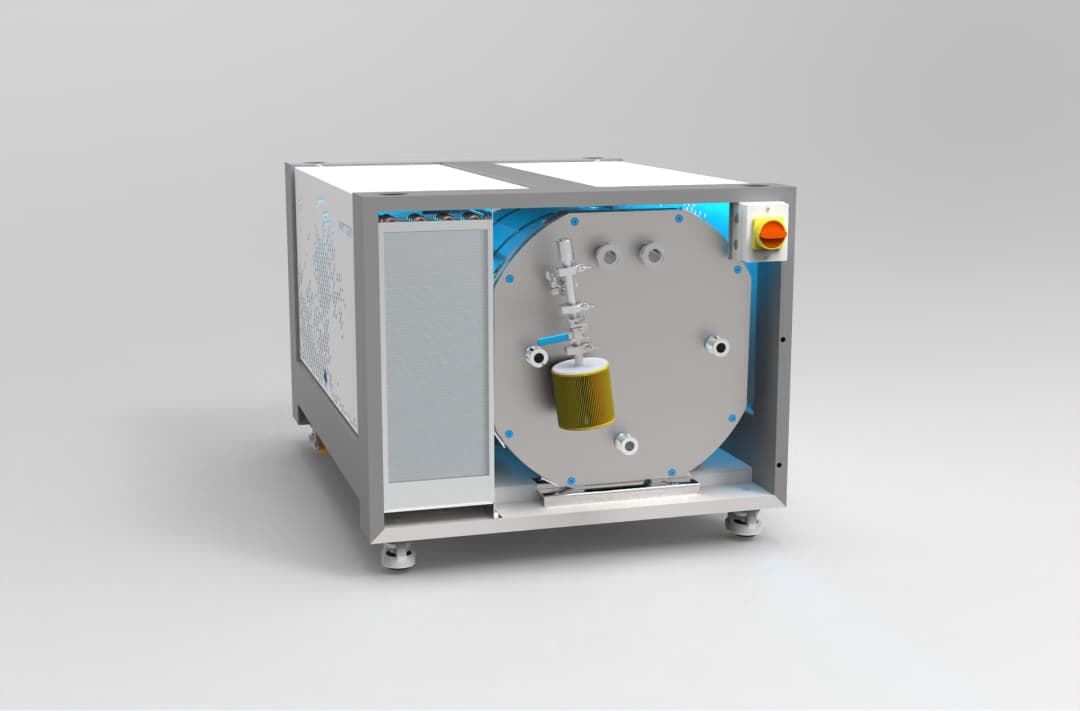

WAVE

FD260

starting price

21900€

Extraction Capacity

25 Kg

Loading Volume

115 liters

Energy Consumption

1.5 KW/h

21900 EUR

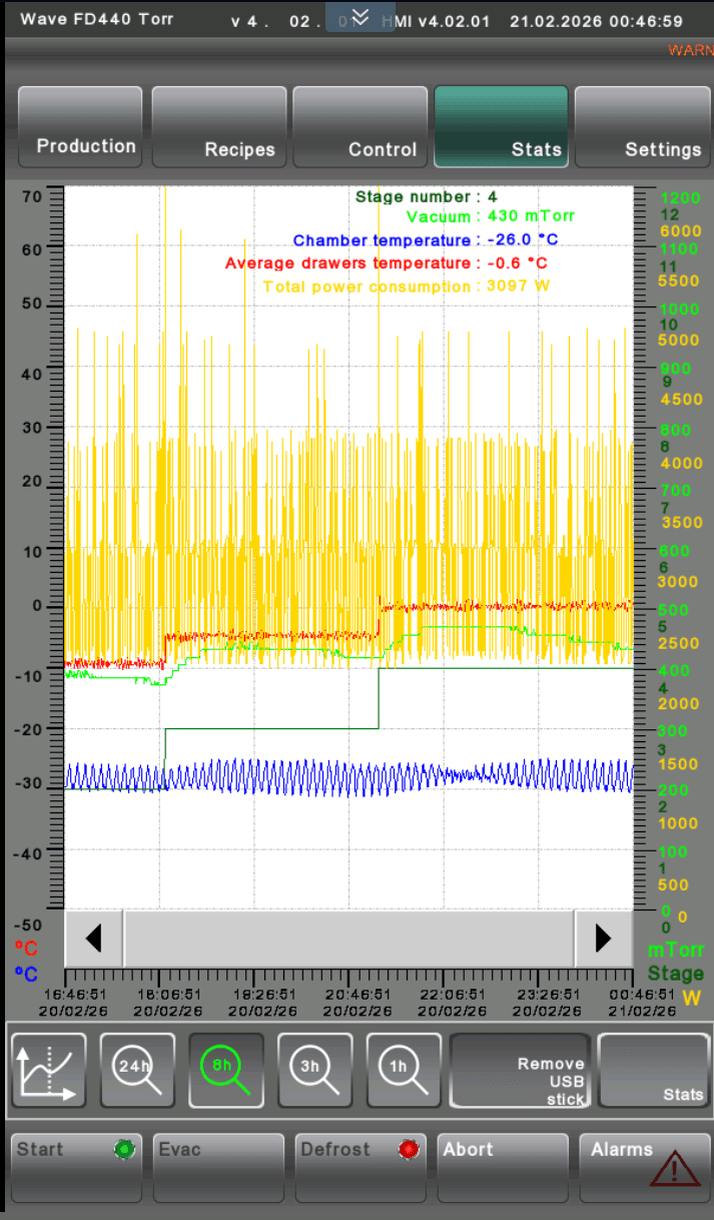

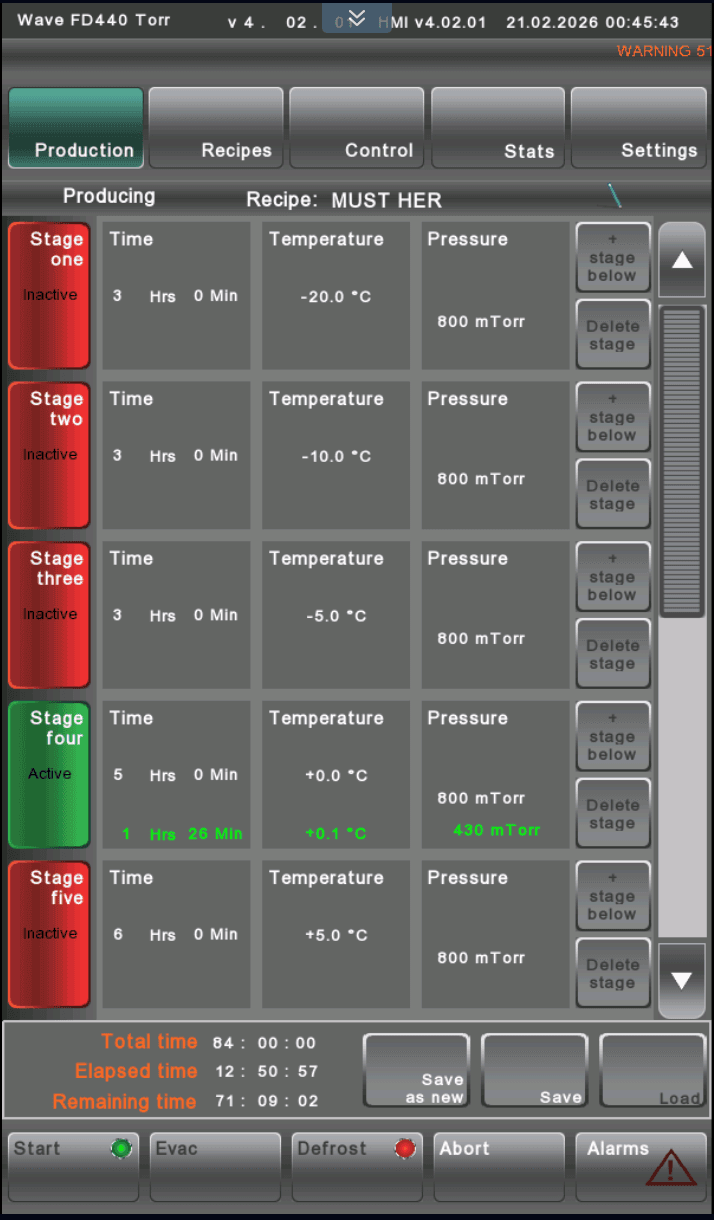

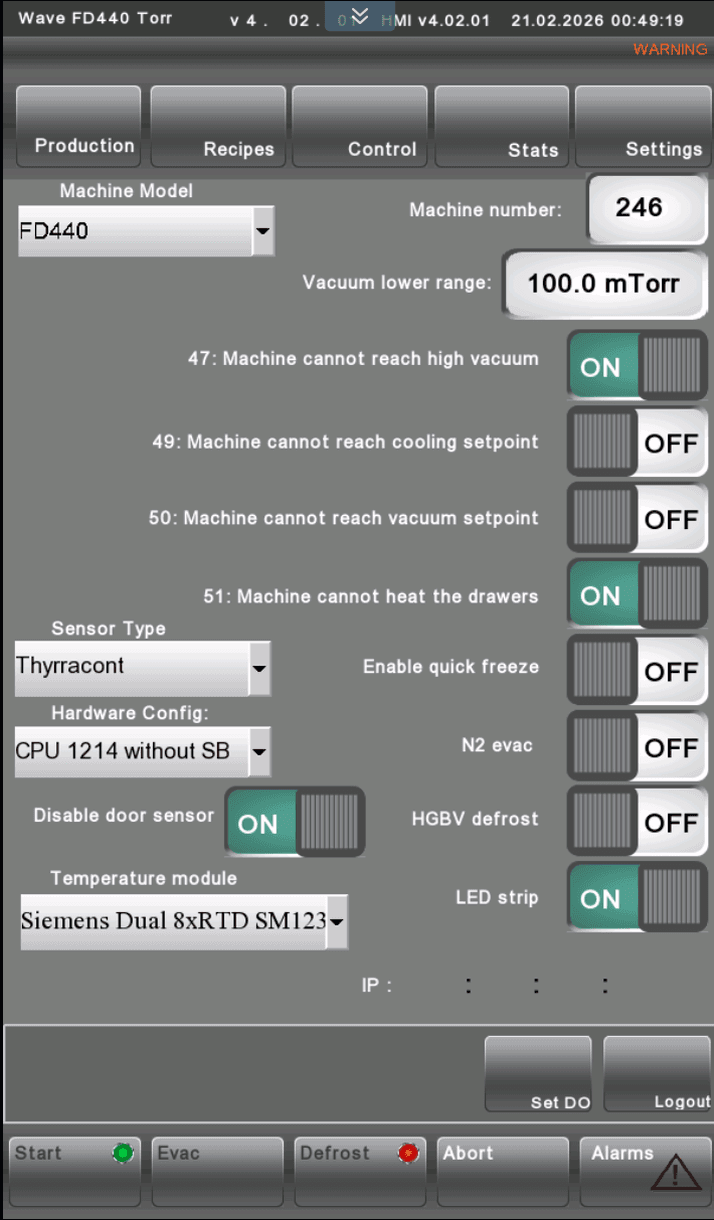

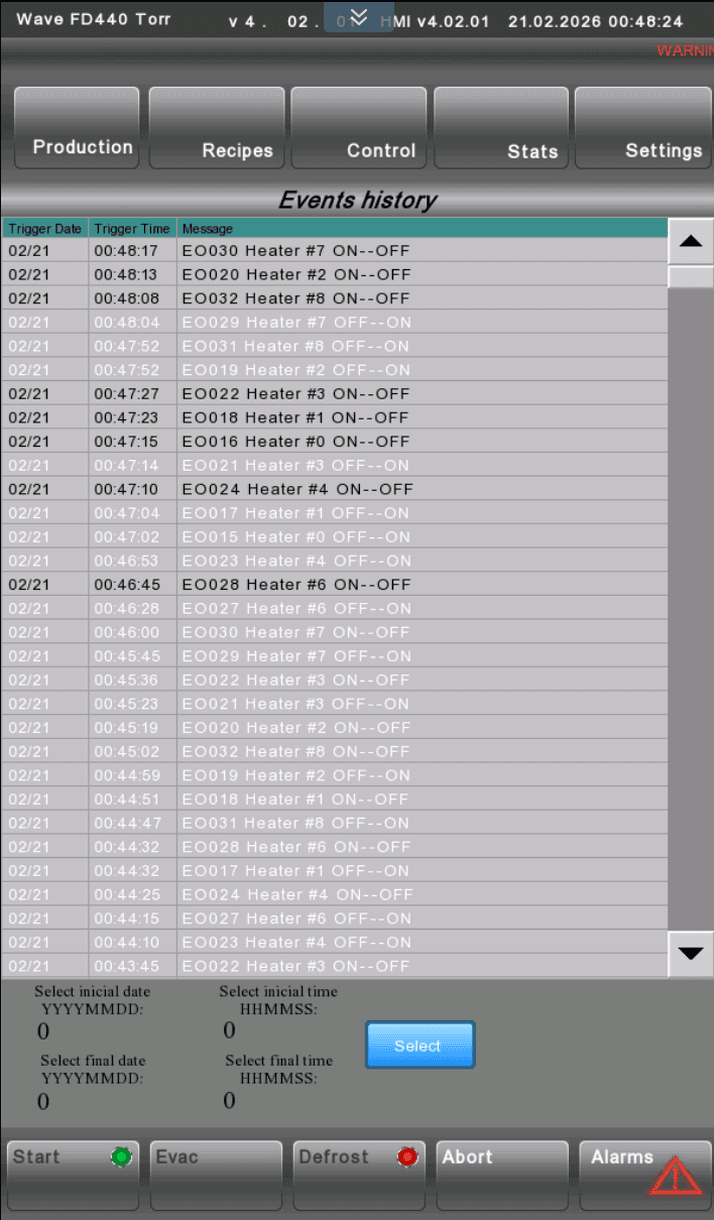

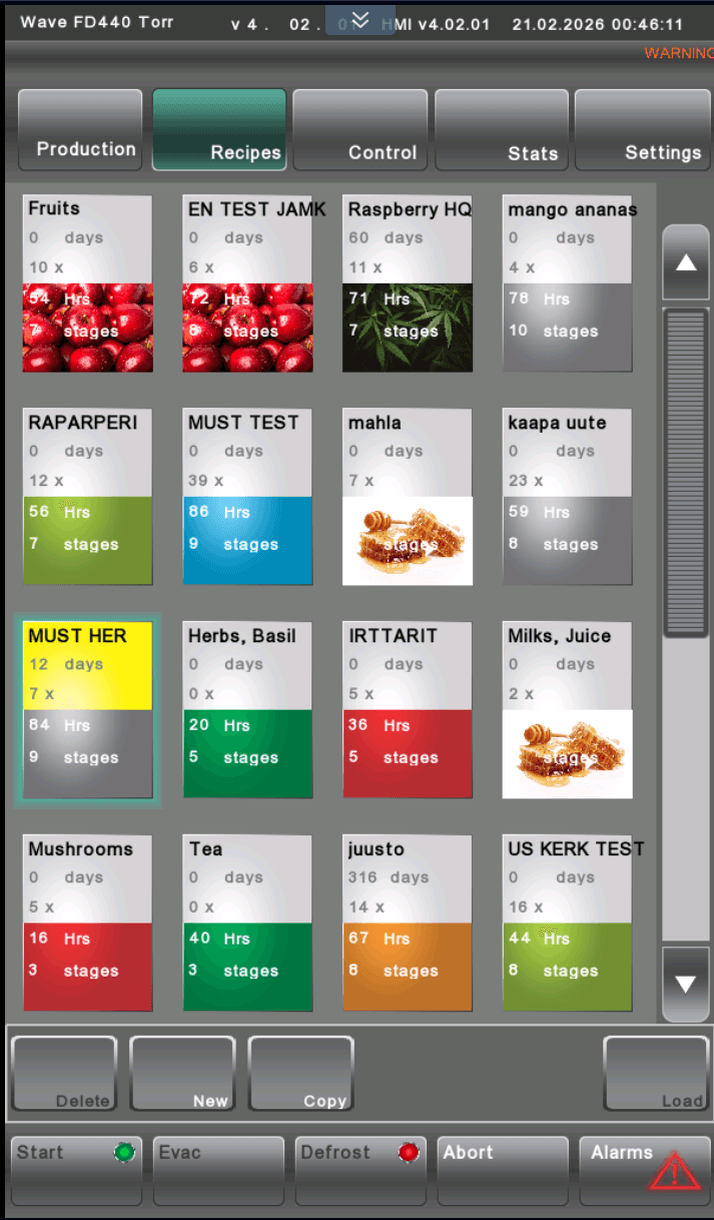

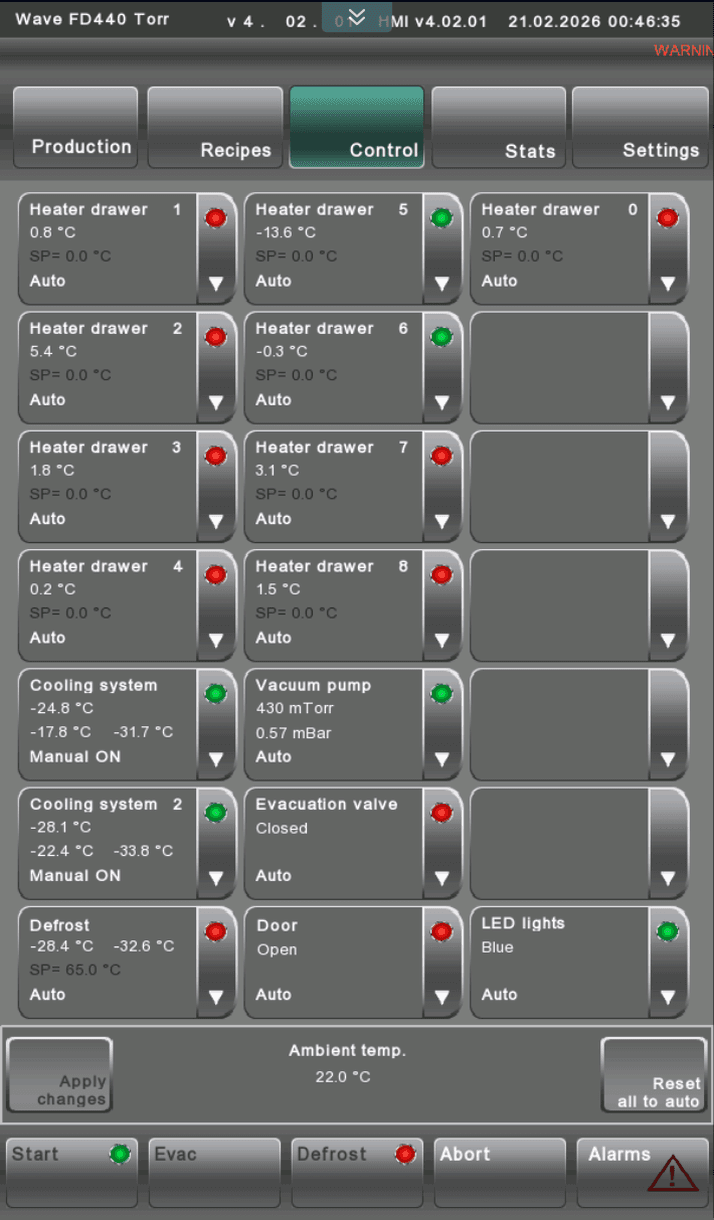

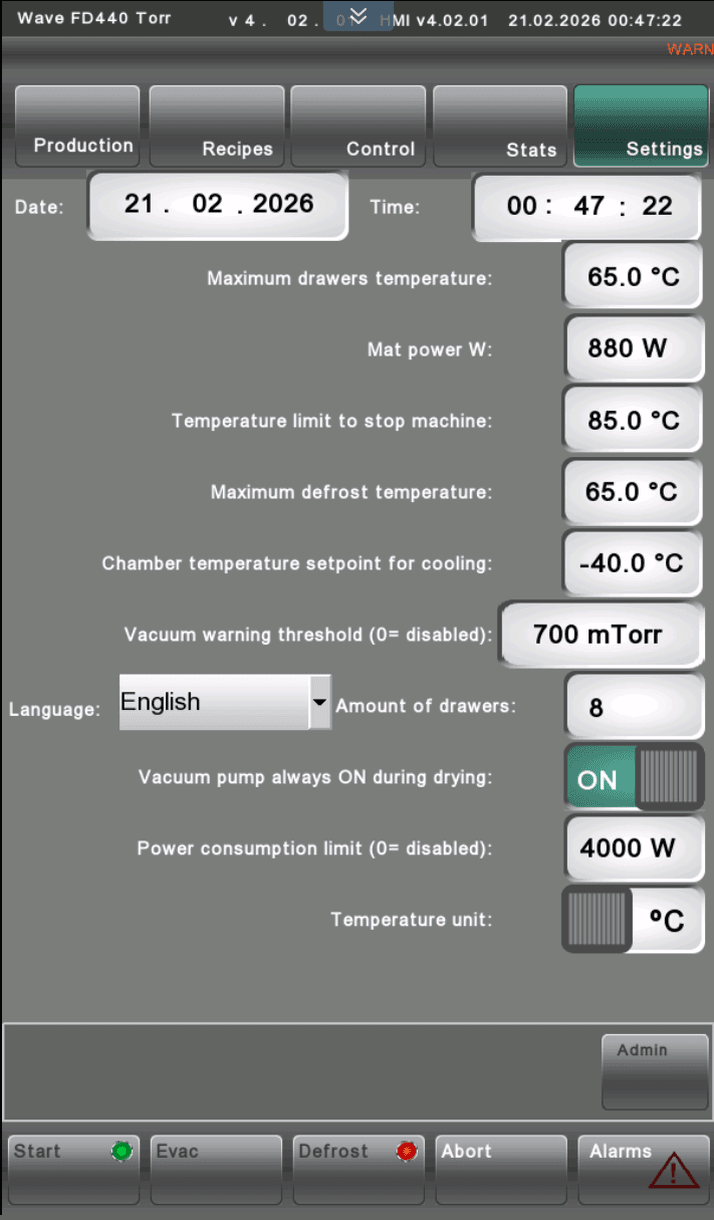

The FD260 uses Siemens Simatic as PLC. Our software is easy to use and allows flexible programming of the drying process, every parameter can be adjusted. Drying can be done in up to 10 cycles and reported statistics give you insight into the effectiveness of the drying process to optimize your end result.

key features
icon
Each shelf individually temperature controlled
icon
Easy to transport and move anytime
icon
Lowest weight, energy use and footprint of all machines on the market
icon
Remote surveillance and assistance through WAVE iot SIM Network
icon
24h WhatsApp support
icon
ABB safety switches for each shelve
icon
Worldwide site service
icon
All metal shelves

TECHNICAL DETAILS

Quality

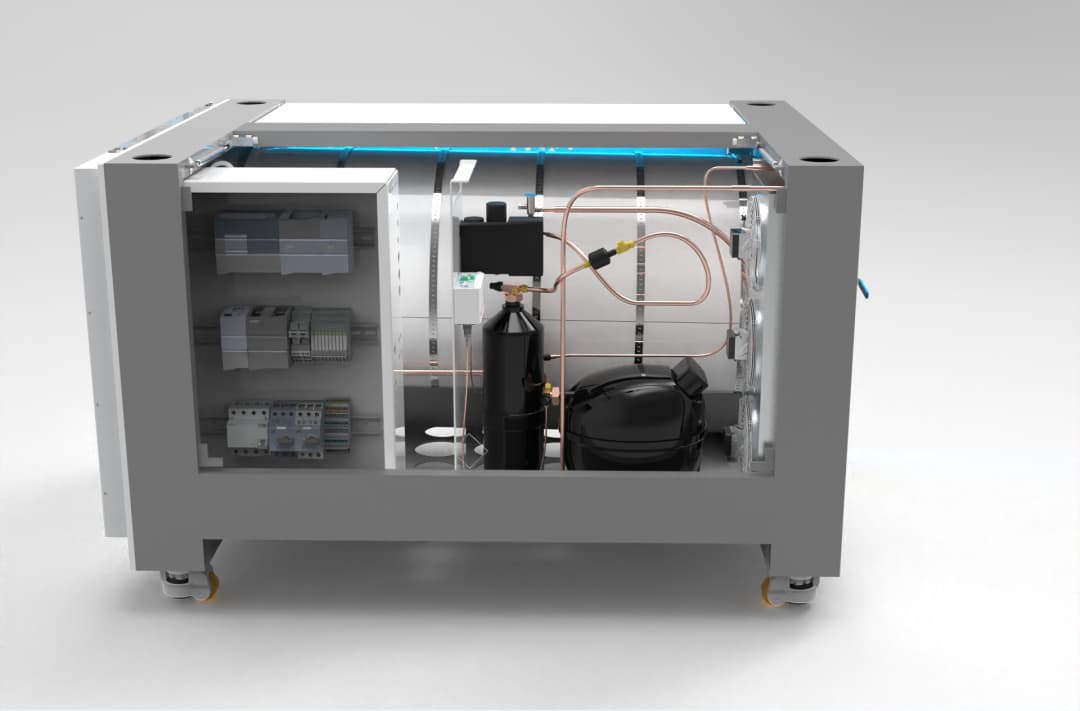

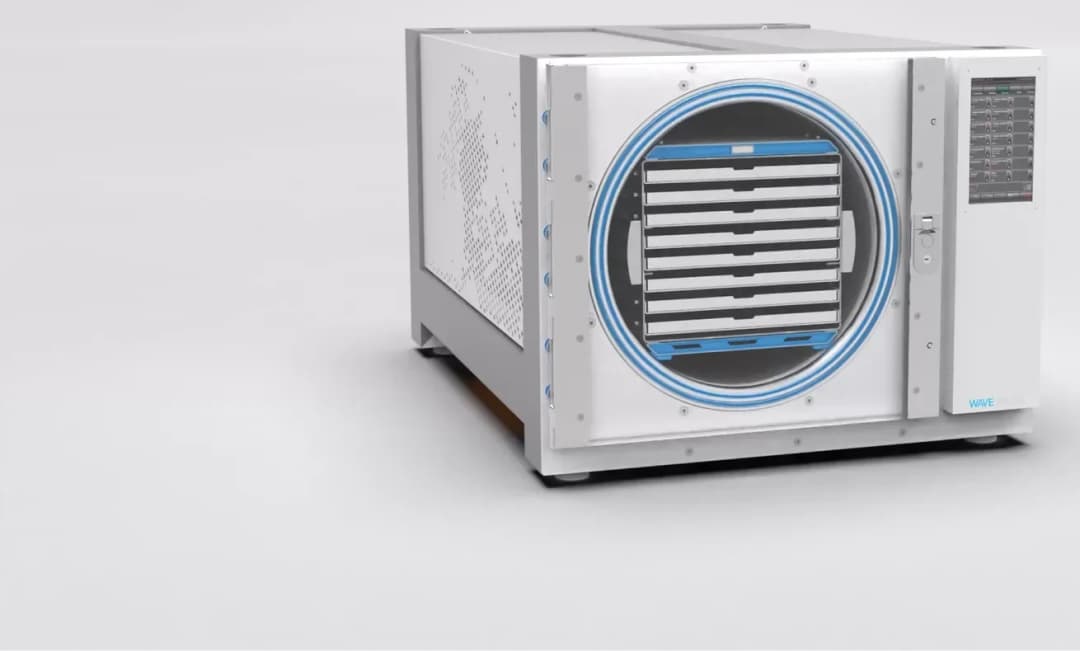

The FD260 uses industrial vacuum technology and has an extruded 7 mm thick vacuum tube. The shutter bodies are available in anodized aluminum or stainless steel. The device is manufactured in our factory in Vienna.

Service

Wave is headquartered in Austria. We supply and support customers throughout Europe. The FD260 is equipped with remote maintenance. Spare parts are always available. We also have a service center in the US which services our US customers.

Modularity

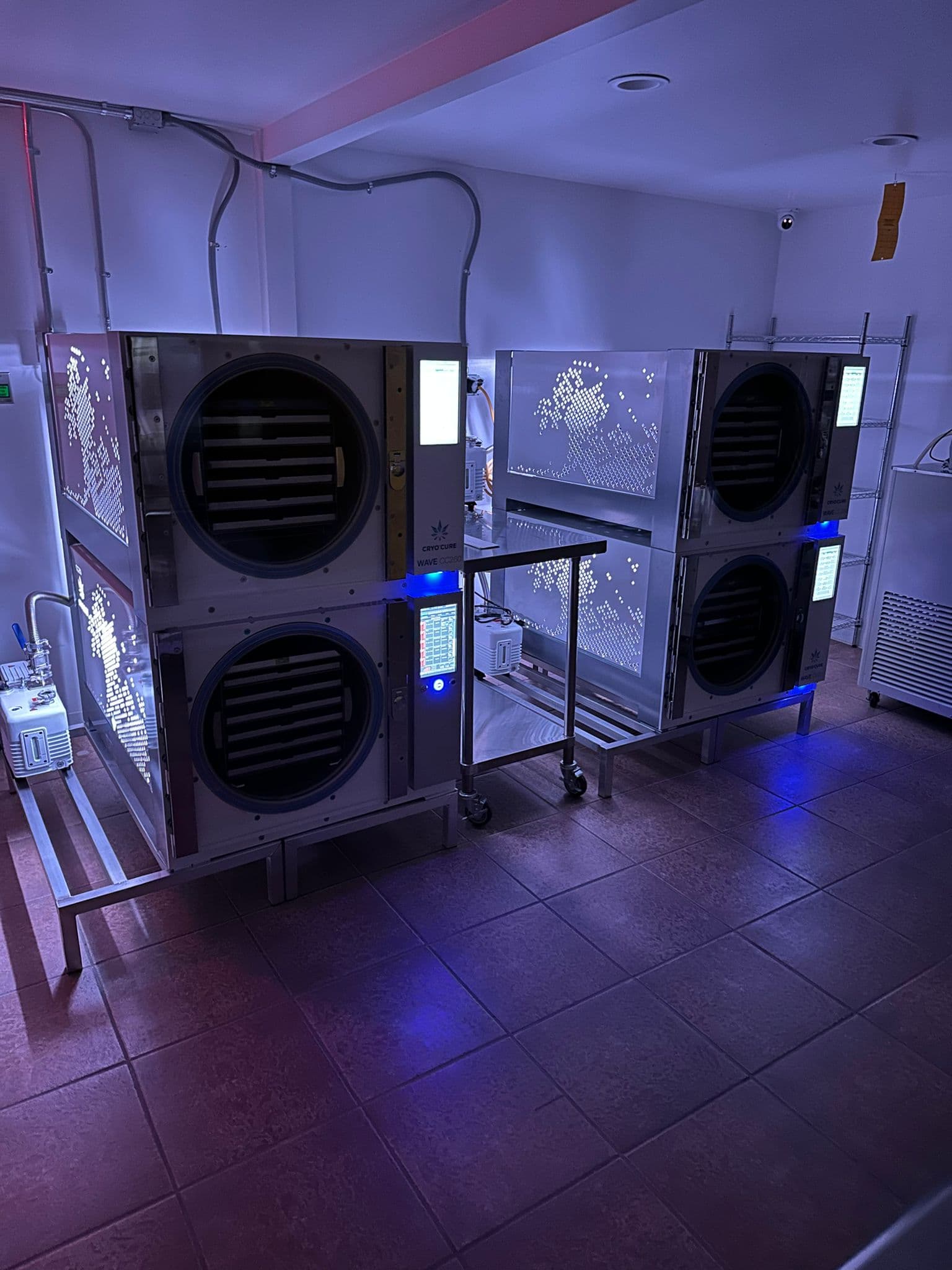

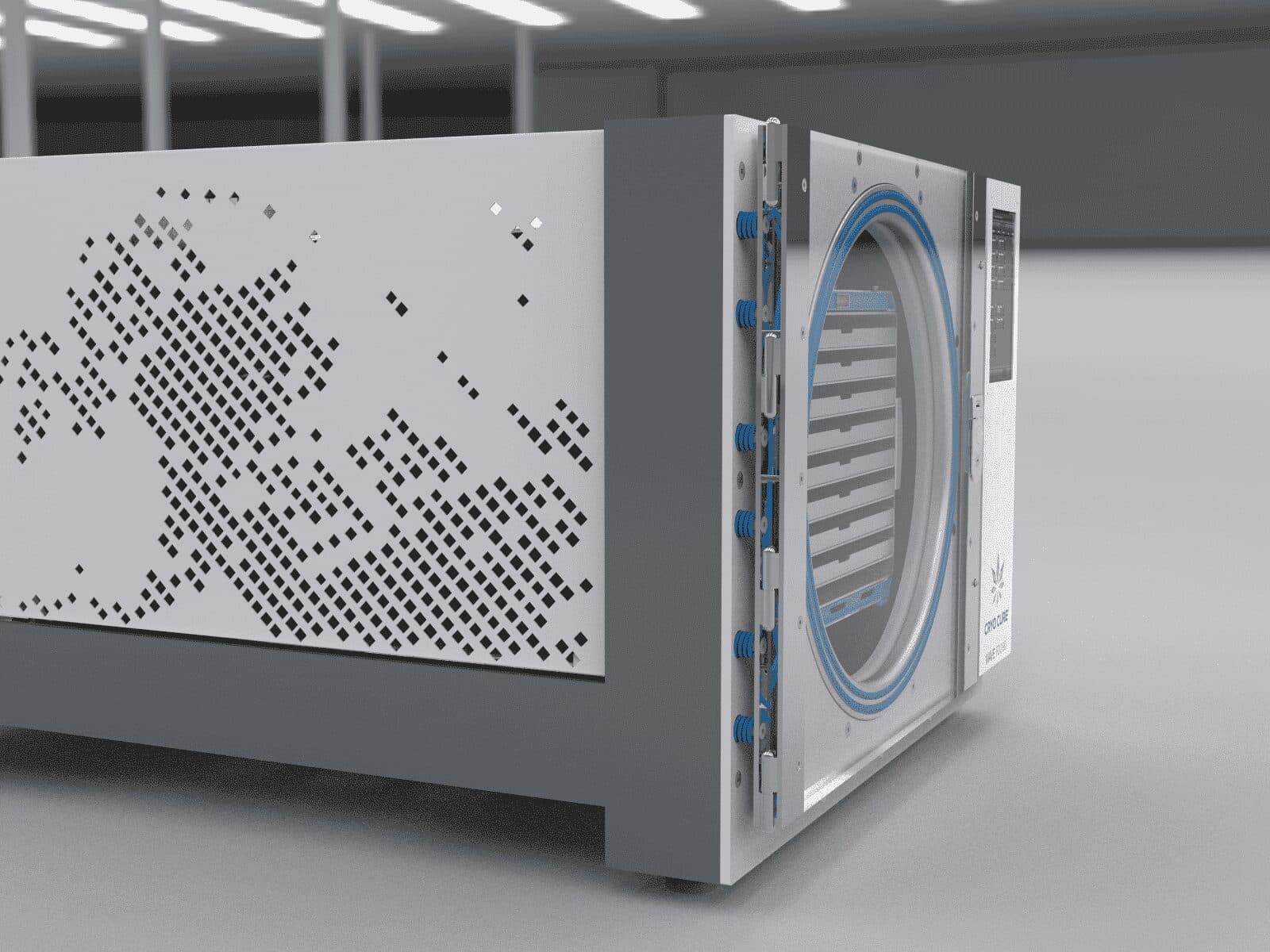

The FD260 has a modular design and can be operated with 1 - 12 compartments, which can be individually mounted and controlled. The devices themselves are stackable and can be operated as a cluster. Additional options regarding the surface finish are also available.

Costs

Our goal is to offer the best price-performance ratio for freeze dryers. The FD260 is available from 21.900,00 EUR net.

EVACUATION

No separate evacuation valve

+0

Manual evacuation valve

+115

High vacuum evacuation valve

+320

Hepa filter for evacuation

+75

NITROGEN

No nitrogen generator

+0

Nitrogen generator for 2x flooding / 24h

+7200

Nitrogen generator for 4x flooding /24h

+9150

DRAWERS

4 drawers option

-280

6 drawers option

+0

8 drawers option standard

'+0

All heaters made in Kapton

+750

Equip 2 drawers with plugs to be removable

'+380

Equip all drawers with plugs to be removable

'+960

All drawers in special steel 316

'+290

All drawers and shelves in special steel 316

+2000

QUICKFREEZE OPTION

No quickfreeze option

'+0

12 ventilators for air movement inside the chamber

'+1900

DEFROST & COMPRESSOR

Regular defrost with 1x2000 Watt heating mat

+0

Additional defrost matt with 2000 W (Total 4000 W)

+380

Hot Gas Bypass valve - defrost additional to mat

'+1750

Speed control for the condenser fan

+560

TUBE

Regular anodized aluminum coating

'+0

Special steel tube SS304

+4300

PLC

3 years IOT Connection

'+990

5 years IOT Connection

+1190

Lights indicating current state of machine

'+280

Siemens Sirius module for pump

'+90

High security switches

+670

Energy counter

'+150

Phases indicator

'+55

USV for the PLC

+750

Light inside the vacuum chamber

'+350

SCIENTIFIC EXTRAS

Feedthrough for USB connection

+350

Feedthrough for additional 4 cables 0,75mm2

'+160

Feedthrough for additional 8 cables 0,75mm2

'+260

Feedthrough for additional 12 cables 0,75mm2

'+380

Extra 2 PT100 temperature sensors

'+120

Extra 4 PT100 temperature sensors

'+200

Extra 8 PT 100 temperature sensors

'+340

Addons

No add ons

'+0

Cryogloves 1x

'+35

Cryogloves 2x

'+60

5 Liter of Wave 19Q oil for vacuum oil pumps

'+90

20 Liter of Wave 19Q oil for vacuum oil pumps

'+350

Set of 4 extra trays anodized aluminium

'+200

Set of 6 extra trays anodized aluminium

'+300

Set of 8 extra trays anodized aluminium

'+400

Set of 12 extra trays anodized aluminium

'+550

Set of 16 extra trays anodized aluminium

'+700

Set of 4 extra trays ss304

'+230

Set of 6 extra trays ss304

'+330

Set of 8 extra trays ss304

'+480

Set of 12 extra trays ss304

'+650

Set of 16 extra trays ss304

'+850

Pump Connection

Standard connection with 700mm flexible steel hose

'+0

Upgrade to 1000mm flexible steel hose

'+80

Upgrade to 1500mm flexible steel hose

'+220

Add manual regular valve KF25

'+85

Add manual regular valve KF40

'+115

Add automated regular valve

'+180

Add automated high vacuum valve

'+450

Pump

Edwards M2/18m3 vacuum pump (refurbished)

'+0

Upgrade to new Edwards M218m3 vacuum oil pump

'+2900

Upgrade to Edwards M2/28m3 vacuum pump (refurbished)

+1400

Upgrade to new Edwards M2/28m3 vacuum oil pump

+4200

Upgrade to new Wave M24 24m3 vacuum oil pump

'+2850

Upgrade to new Wave M36 36m3 vacuum oil pump

'+3200

Upgrade to new Edwards XDS15i scroll pump

'+5650

Upgrade to Edwards XDS35i scroll pump (refurbished)

'+6200

Upgrade to WAVE 16 oilless scroll pump

+2400

Upgrade to WAVE 36 oilless scroll pump

+3900

No pump

'-1200

Replace pump with an automated valve

'-980

FEET/ WHEELS

Improved rubber feet (4 pcs)

'+120

Wheels (4pcs)

'+260

High weight wheels (4 pcs)

'+680

Transport

Full Service Custom Brokerage for USA

+2800

Express order within 8 weeks

'+3600

Super express order within 5 weeks

'+7200

Warranty & Service & Remote Packs

1 Year extra warranty

'+1800

2 Years extra warranty

'+3600

3 Years extra warranty

'+5400

Small service pack

+690

Full service pack including tools

+1850

On site introduction to the machine (Europe & USA)

'+890

On site introduction to the machine (Asia, Africa, South America)

'+1790

3RD PARTY RECIPES

Drypro all berries programm

120

Quickdry for smoothies and pastes

50

TECHNICAL DATA

Extraction capacity

25 KG

Drawer loading volume

115 liters

Surface (8 trays)

2.8 m2

Surface tray

1000 mm x 350 mm

Compartments

Optional from 1 to 12

Tray material

Anodized aluminum or stainless steel

Cooling capacity

1.5 KW

Heating capacity

Up to 400 Watt/drawer

Current load

Max 6.5 KW

Condensation temperature

-40 C

Maximum vacuum

50 mTorr

Time to max. vacuum

20 minutes

Pump

Refurbished Edwards RV18 or stronger

Evacuate

Electromagnetic

Door closing mechanism

Mechanical

De-icing

Electric

De-icing time

20 to 40 minutes

Monitor

10" HD color touchscreen

Control system

SIEMENS simatic

Connectivity

Ethernet

Door

40 mm acrylic

Vacuum chamber

Extruded aluminum 7mm

Valkuum chamber surface

Hard anodized 25u

Front panel

Powder-coated

Total weight

310 KG

Electricity EU Version

400V/3/N

Electricity US Version

240V/1/N (120V/2/N)

Size (L x W x H)

127,5 cm x 93,5 cm x 71 cm

Ambient Temperature

+17°C to +22°C

Design by

Bernhard Neuwirth

download FD260 technical description
