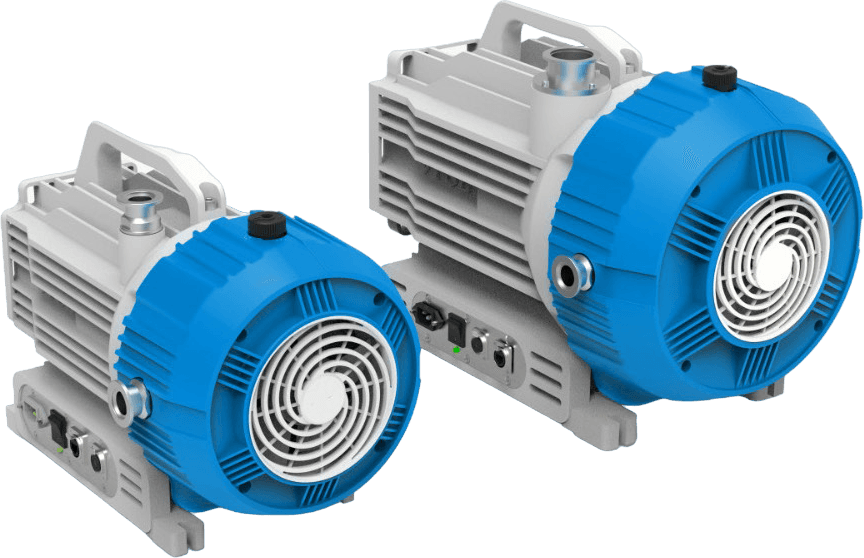

WAVE DRY
SCROLL VACUUM PUMP
WAVE Dry series scroll vacuum pump is a completely oil-free and clean vacuum pump. It adopts the most advanced bellows isolation structure in the world to completely isolate the compression chamber and the bearing. It also uses fewer bearings to make the pump quieter and more reliable. At the same time, it can extract non-corrosive organic solvents and has stronger water vapor processing capacity. The WAVE Dry scroll vacuum pump is equipped with an independent controller, which makes the pump more intelligent, and can realize the operation of speed regulation, current limiting, and voltage stabilization of the pump according to the end user's process.

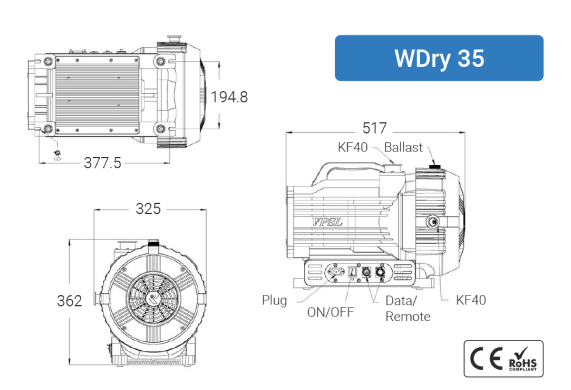

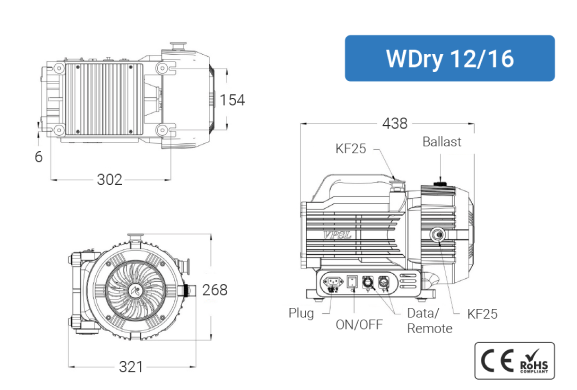

Dimension
Working Principle

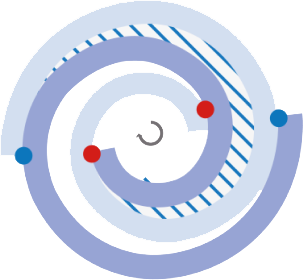

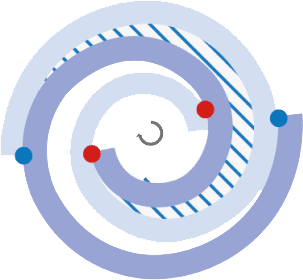

Step 1
Gas enters scroll set

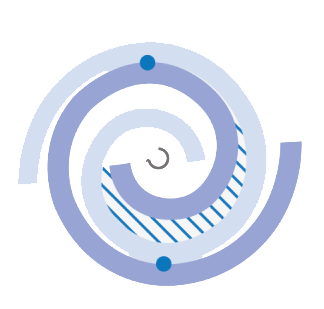

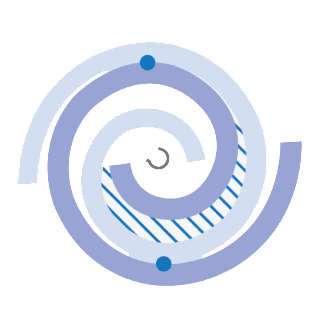

Step 2
Gas is displaced and…
Step 3
compressed toward center hub
Step 4
Gas exhausted at center hub

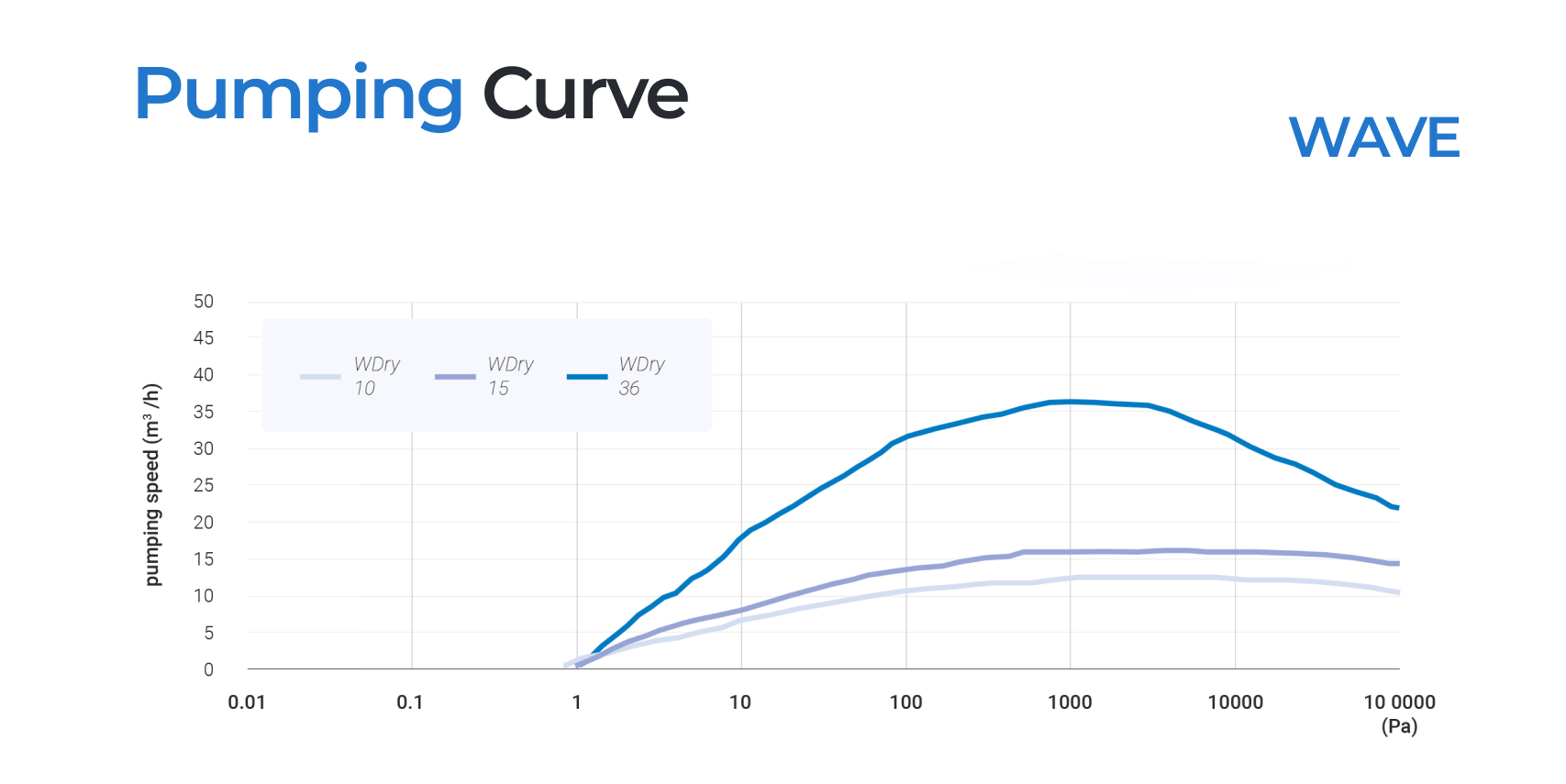

Technical Parameters
| Data | Model (unit) | WDry10 | WDry15 | WDry36 |
|---|---|---|---|---|
| Displacement | m³/h | 12.2 | 16.0 | 36.0 |
| Ultimate Vacuum | mbar | 0.007 | 0.007 | 0.009 |
| Motor Power | W | 400 | 400 | 1200 |
| Voltage Input | V | 220-240 | 220-240 | 220-240 |
| Noise Level | dB(A) | 53 | 53 | 56 |
| Inlet/outlet flange | - | KF25/KF25 | KF25/KF25 | KF40/KF25 |
| Mix Water Vapour | g/hr | 136 | 268 | 270 |
| Leak Rate | mbar-l/s | <1×10⁻⁸ | ||
| Dimension (LxWxH) | mm | 438×260×300 | 517×325×358 | |
| Weight | kg | 26 | 27 | 47 |
| Cooling | - | Air-cooled | ||
| Operating Temperature | °C | 0-40 | ||
| Hz | - | 50/60 | 50/60 | 50/60 |

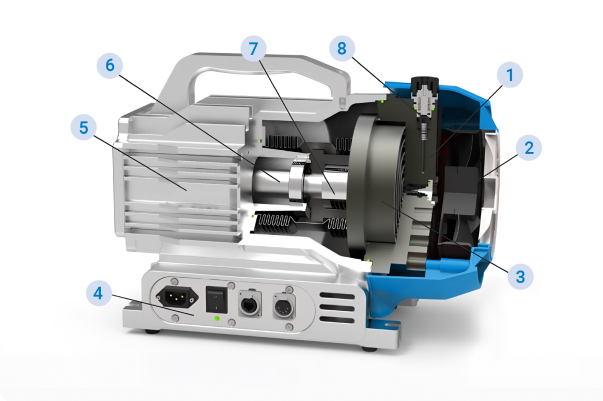

Sectional View
our pumps
WAVE WDry 10
The smallest of our Scroll pumps with 10m³ pumping speed is ideal for your smaller laboratory machines, for freeze drying but also suitable for any other dry or wet procedure. Our pumps are suitable for all types and brands of freeze dryers and other applications as well.
(net plus VAT)
WAVE WDry 15
The WAVE Dry15 is the entry level for freeze drying and industrial solutions, with 15m³ of pumping speed. Our pumps are suitable for all types and brands of freeze dryers and other applications as well.
(net plus VAT)
Wave WDry 36
The Wave WDry 36 is our most popular model, it is the best choice for almost all of our smaller freeze dryers the FD260 and FD440, and will help to obtain the best drying results with very little service effort. The seals needs to be change about every 12 to 24 months. Its also suitable for any other vacuum-related application, dry or with water up to 400 grammes per hour. Our pumps are suitable for all types and brands of freeze dryers and other applications as well.
(net plus VAT)
have anything to ask about our Pumps.
Let us know any of your questions or comments about our products and services. We get back to you soon as possible.
