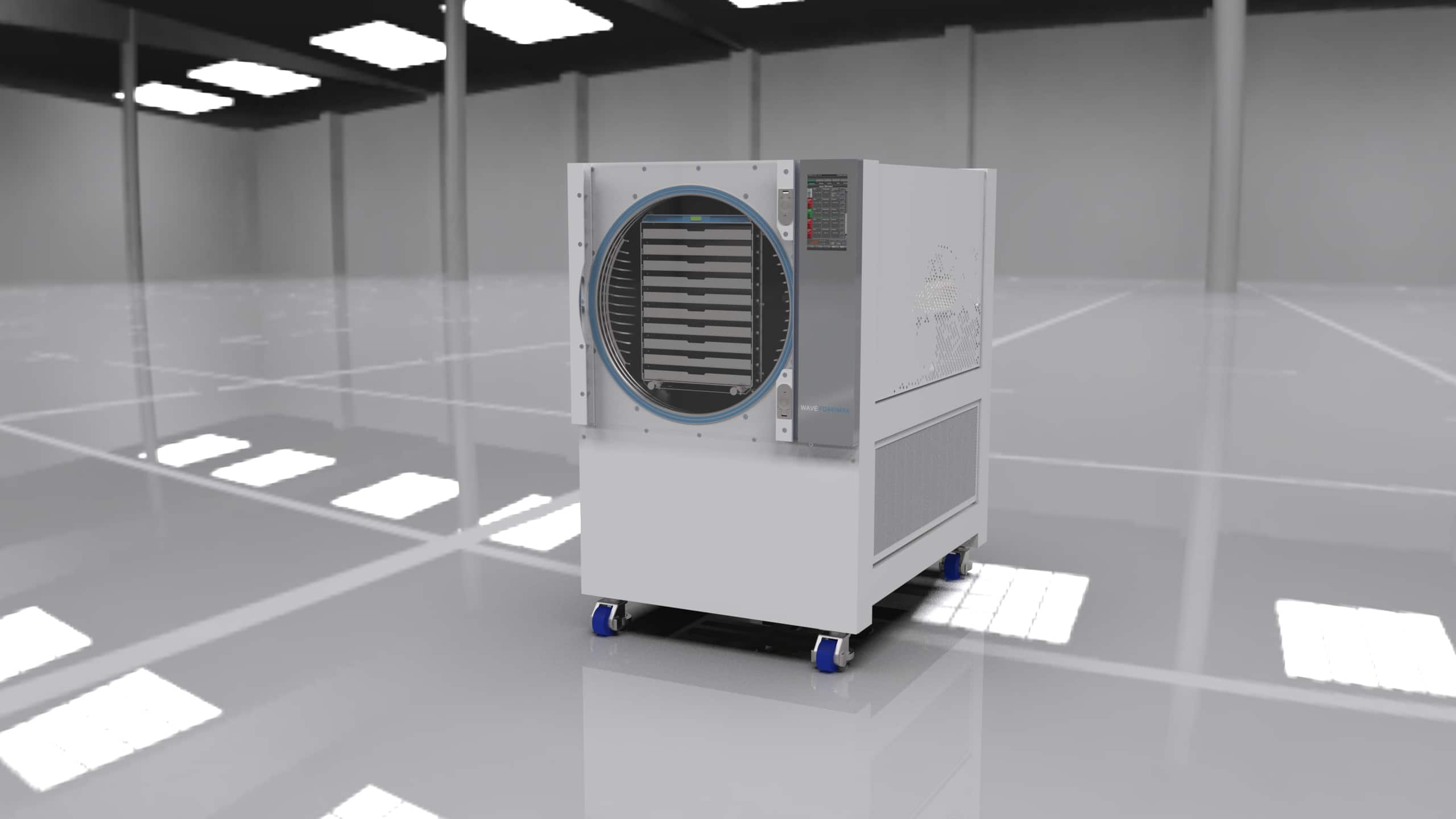

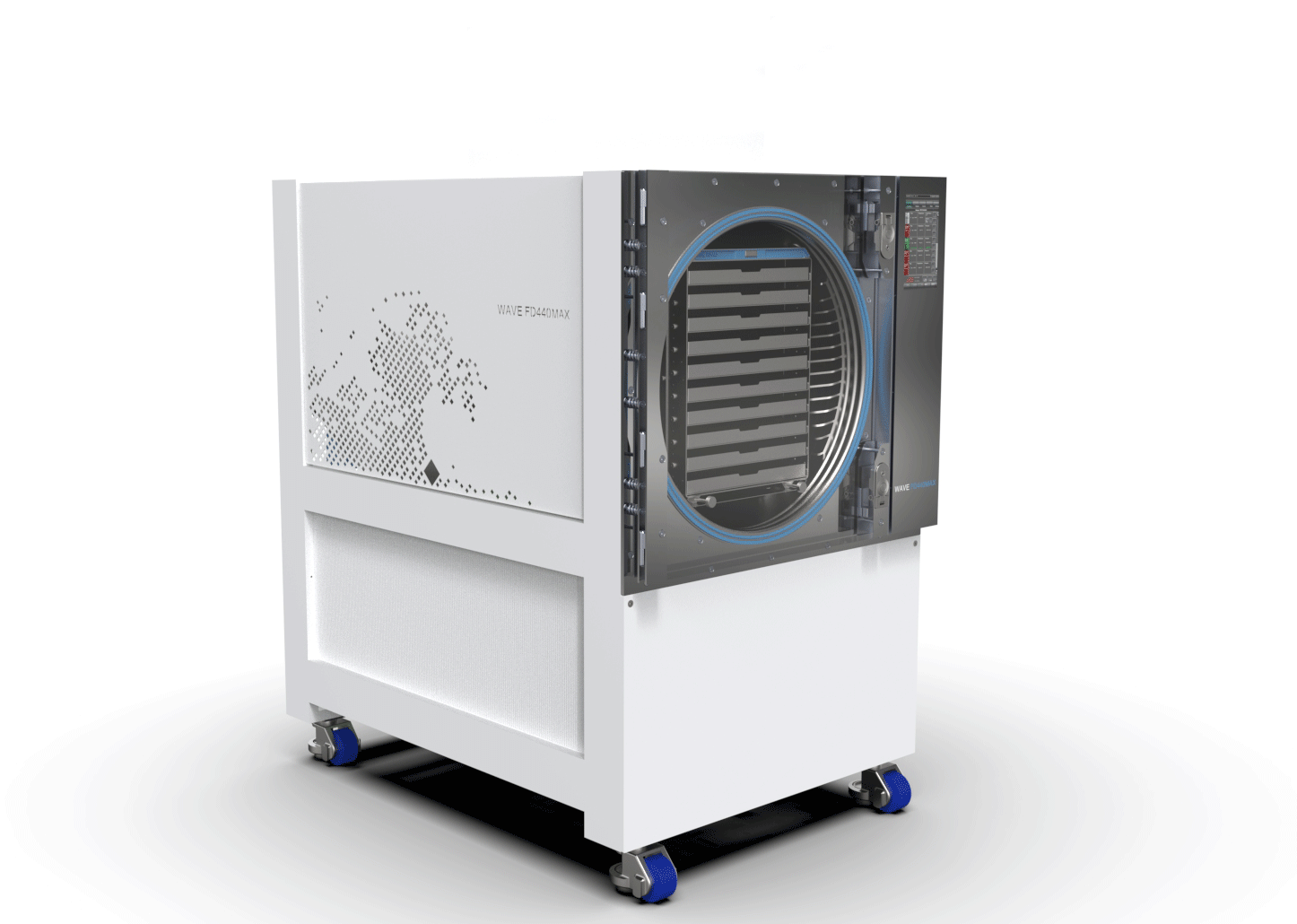

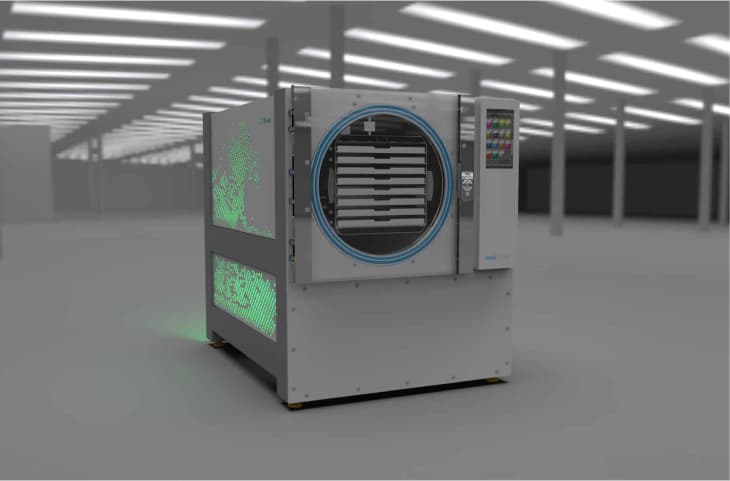

FD440

Starting Price:35600€

60 KG

Extraction Capacity

192 liters

Loading Volume

3 KW/h

Energy Consumption

TECHNICAL DETAILS

Quality

The FD440 uses industrial vacuum technology and has an extruded 7 mm thick vacuum tube. The shutter bodies are available in anodized aluminum or stainless steel. The device is manufactured in our factory in Vienna.

Service

Wave is headquartered in Austria. We supply and support customers throughout Europe. The FD440 is equipped with remote maintenance. Spare parts are always available. We also have a service center in the US which services our US customers.

Modularity

The FD440 has a modular design and can be operated with 1 - 12 compartments, which can be individually mounted and controlled. The devices themselves are stackable and can be operated as a cluster. Additional options regarding the surface finish are also available.

Costs

Our goal is to offer the best price-performance ratio for freeze dryers. The FD440 is available from $37,500.

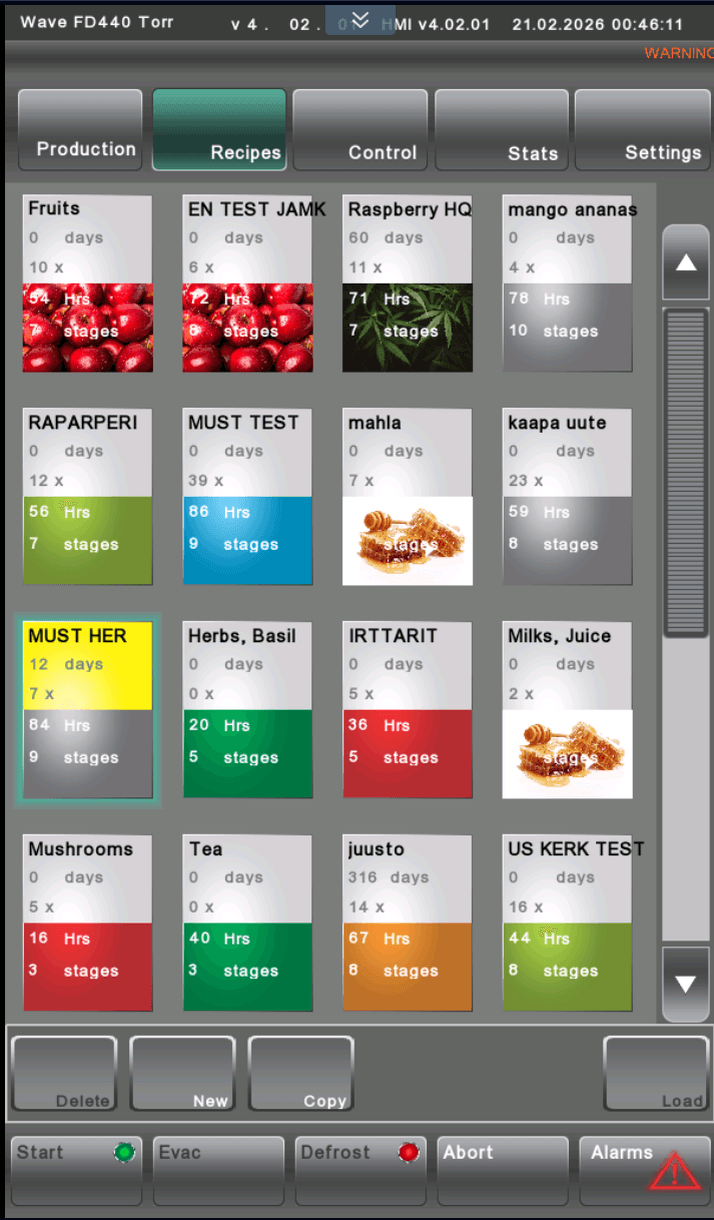

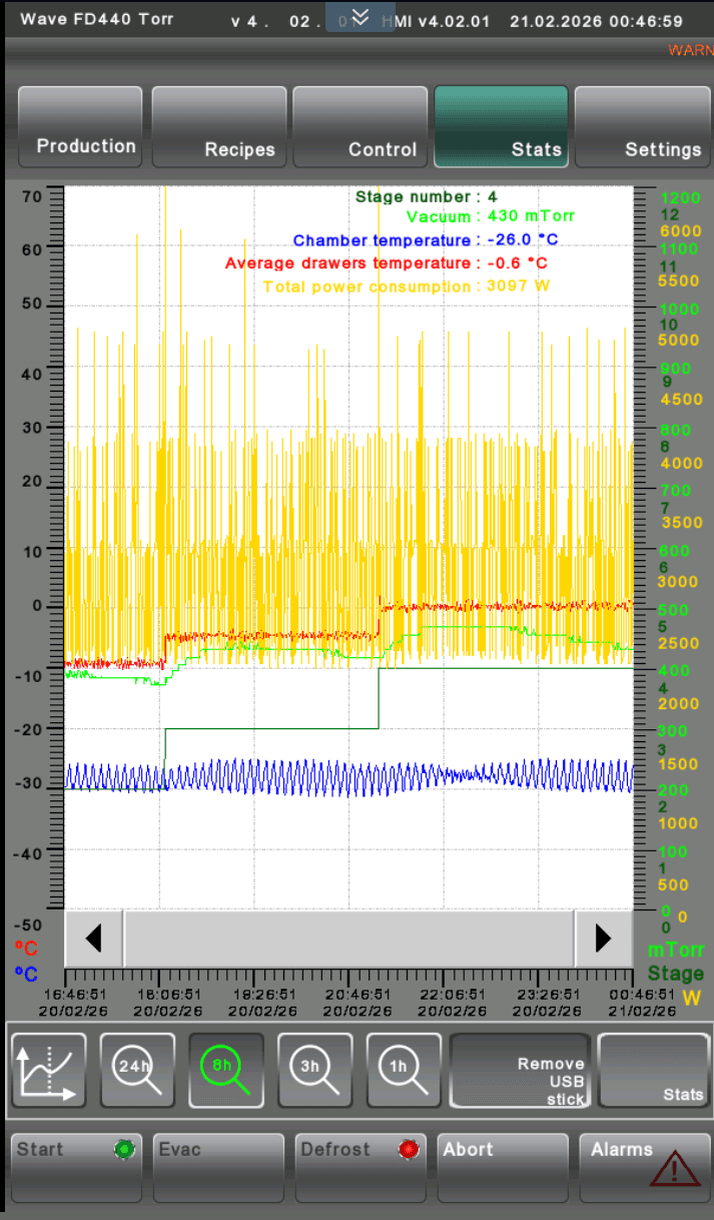

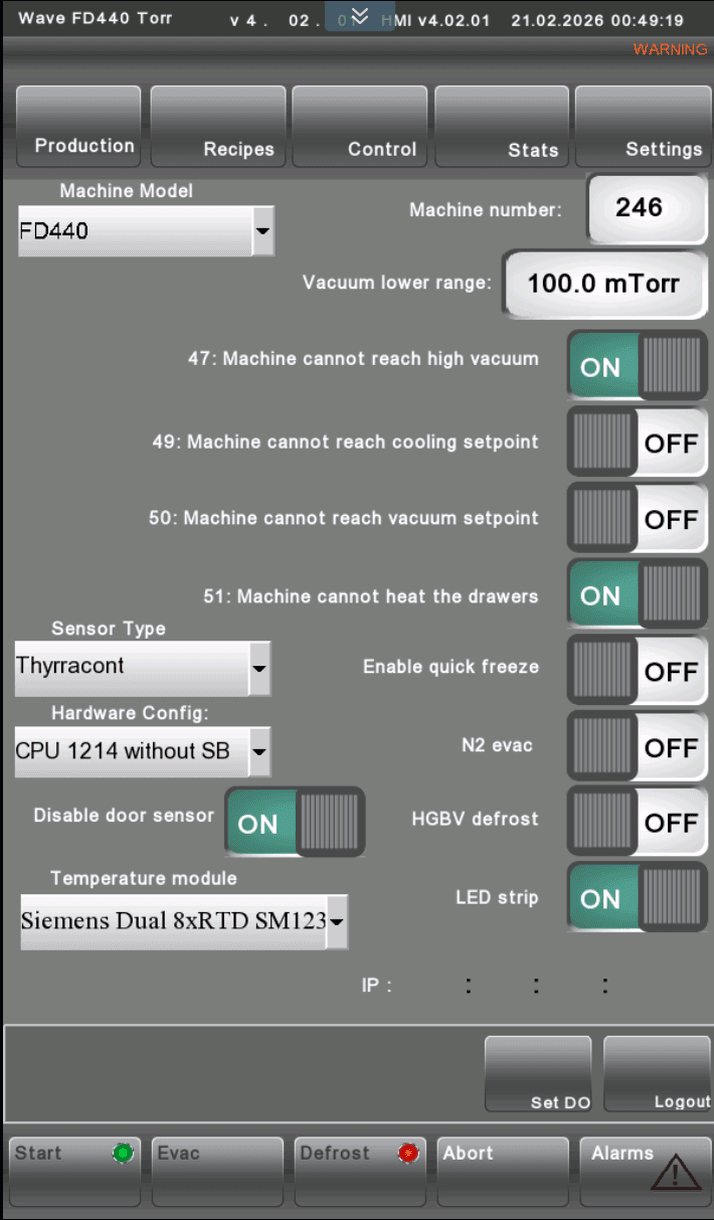

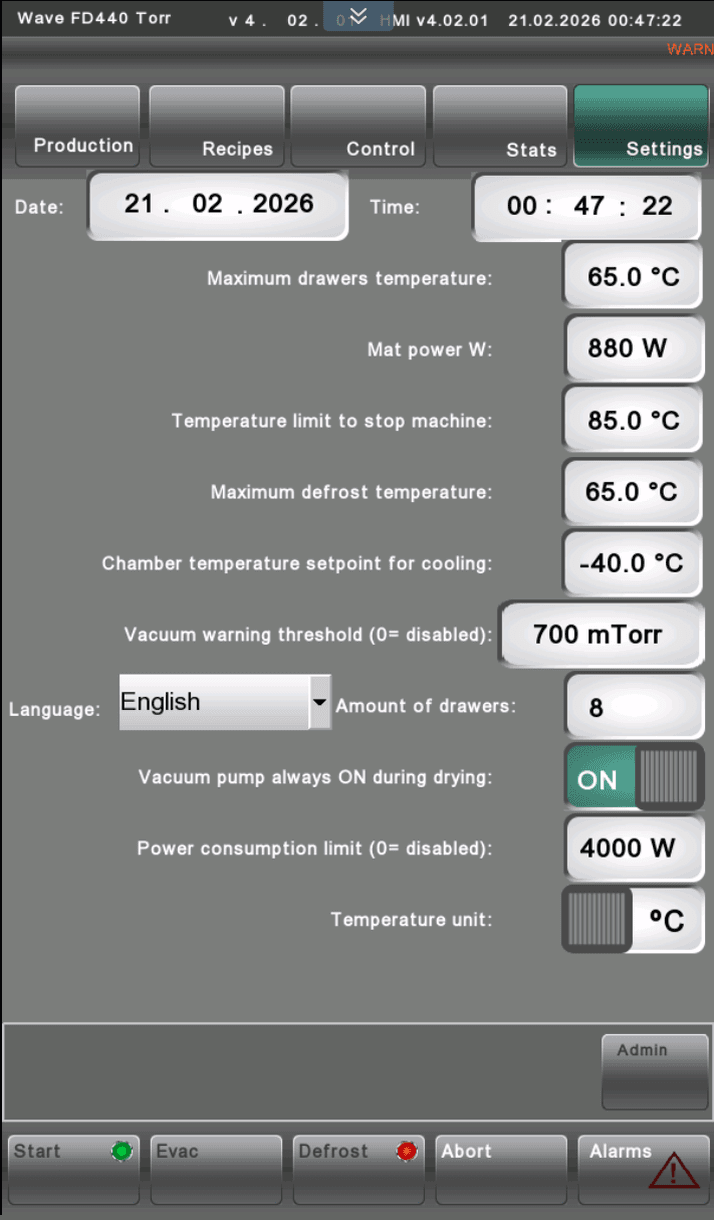

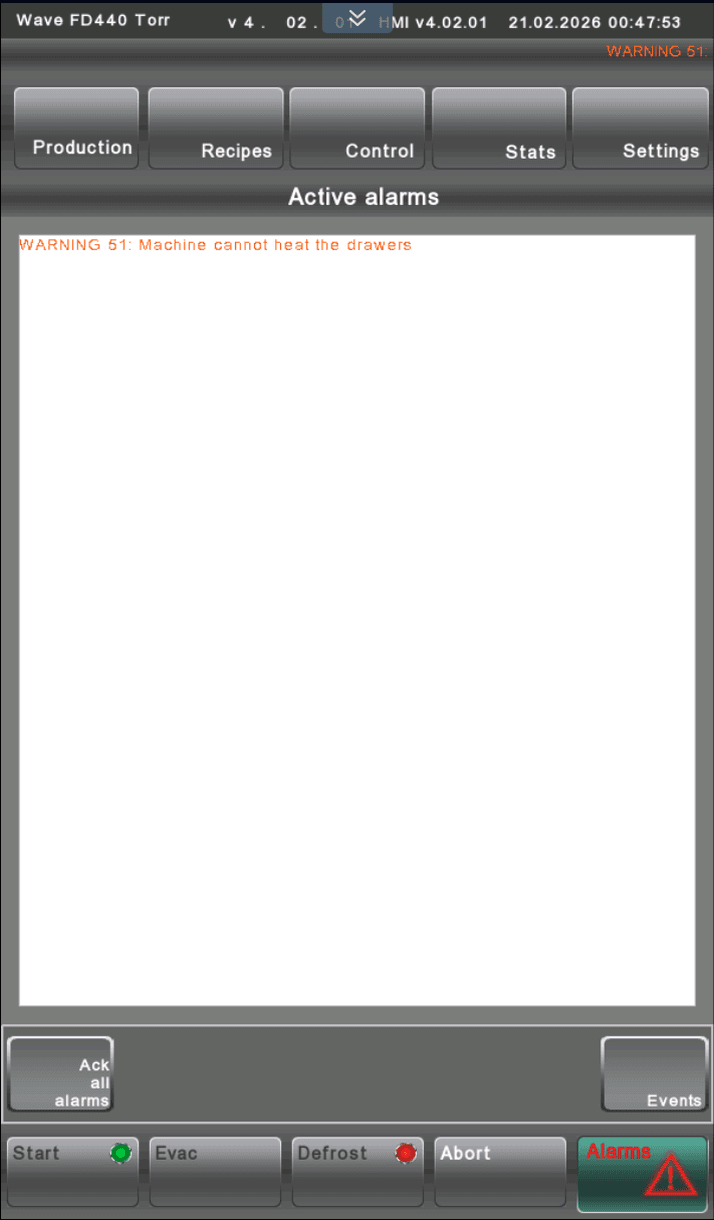

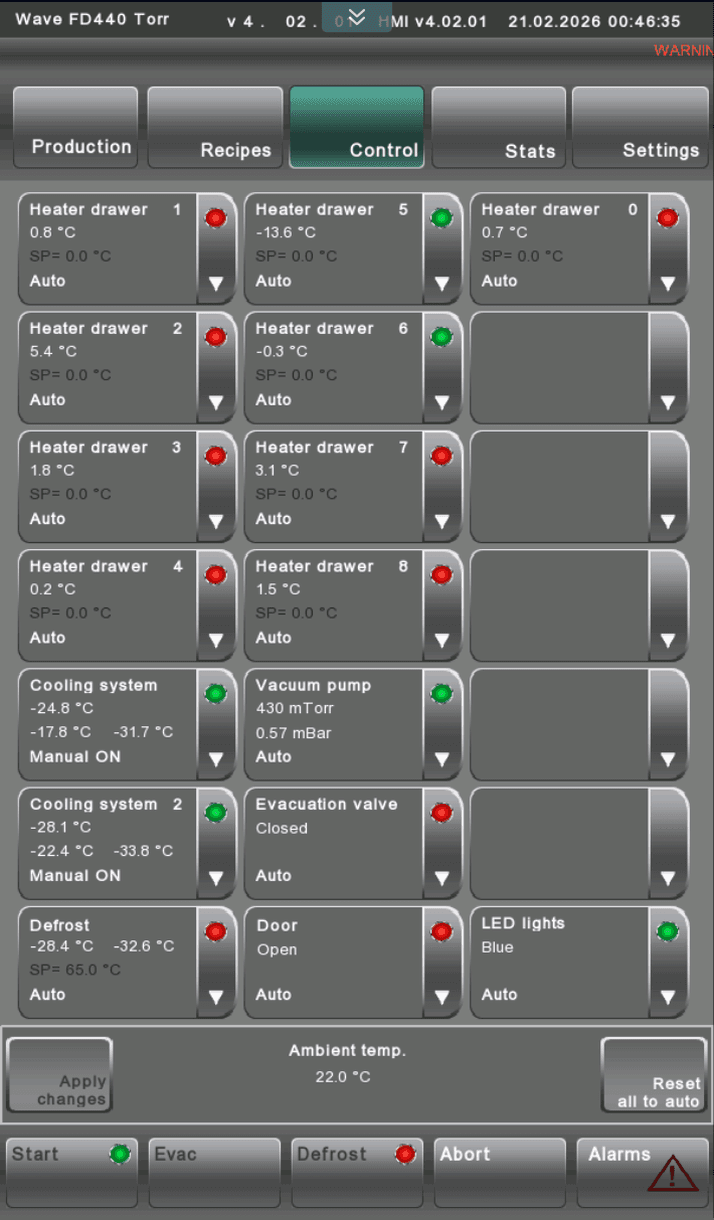

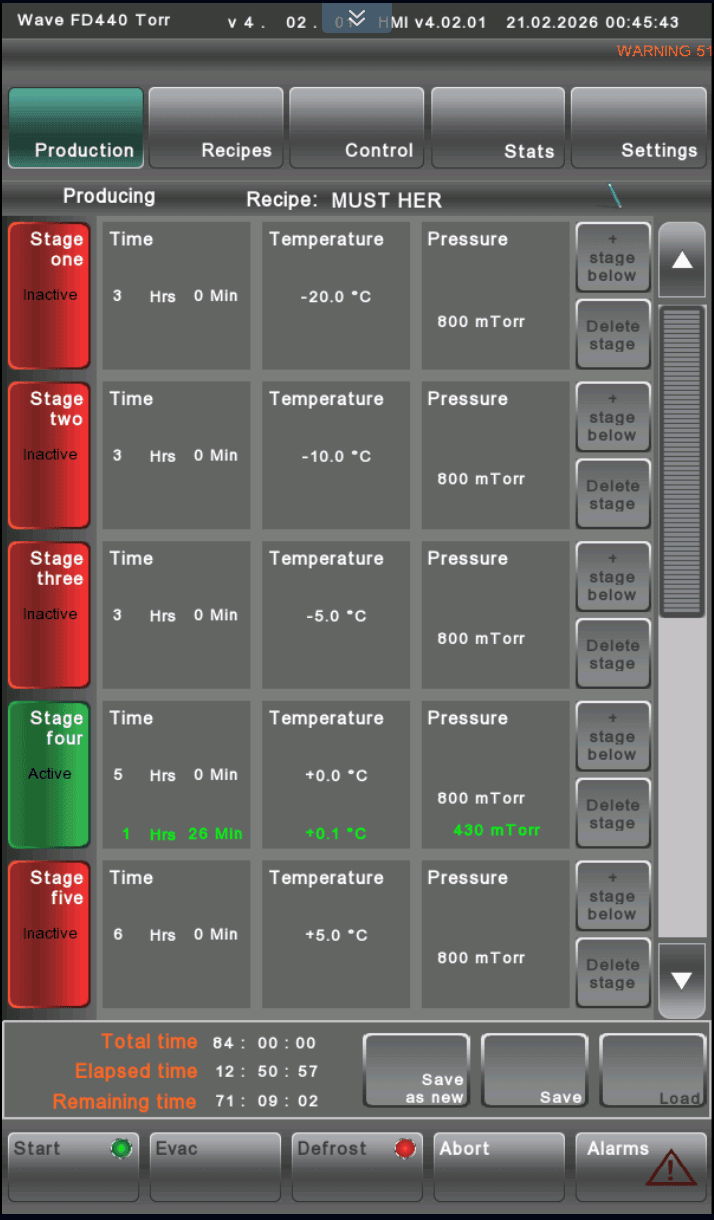

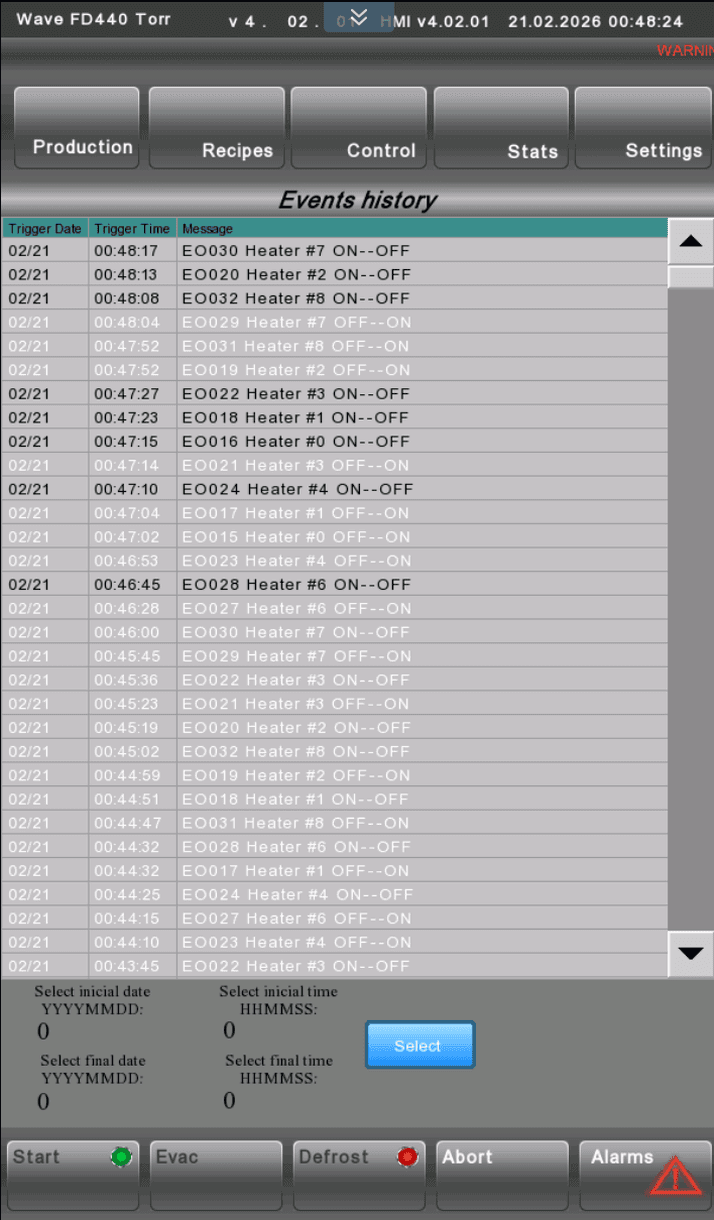

The FD440 uses Siemens Simatic as PLC. Our software is easy to use and allows flexible programming of the drying process, every parameter can be adjusted. Drying can be done in up to 10 cycles and reported statistics give you insight into the effectiveness of the drying process to optimize your end result.

EVACUATION

No separate evacuation valve
+0
Manual evacuation valve
+115

A manual evacuation valve is especially helpful for evacuation with powders of very light materials, to prevent them to fly around in the chamber after drying.
High vacuum evacuation valve
+320

A manual evacuation valve is especially helpful for evacuation with powders of very light materials, to prevent them to fly around in the chamber after drying. This evac has a very low leak rate and is for customers that need very low pressure for drying.
Hepa filter for evacuation
+75

When using a manual evacuation valve, add a hepa filter to make sure the air that is drawn into your material is clean.

NITROGEN

No nitrogen generator
+0
Nitrogen generator for 2x flooding / 24h
+7200

Some applications, such as citrus fruits, need to be evacuated (and packed) with nitrogen, to avoid oxidation. This generator can provide 600Liters of 98% nitrogen per 24h, to be used for evacuation.
Nitrogen generator for 4x flooding /24h
+9150

Some applications, such as citrus fruits, need to be evacuated (and packed) with nitrogen, to avoid oxidation. This generator can provide 1200 Liters of 98% nitrogen per 24h, to be used for evacuation.

DRAWERS & HEATERS

4 drawers option
-280

Use only 4 drawers for very large items to dry, such as flowers. The height of each shelve is 80 mm.
6 drawers option
+0

Use 6 drawers for many items, and everything that can be easily staked, such as rolling fruits or berries. The height of each shelve is 53 mm.
8 drawers option standard
'+0

This is our standard configuration, it has lots of surface and works with most cut fruits, berries and vegetables, herbs and many more items. The height of each shelve is 40 mm.
All heaters made in Kapton
+1680

Kapton is a very durable and very thin material that is easy to clean and does not take on dirt or smell easily. The heaters which are placed between sheets of Kapton have excellent heat dispersing qualities and would heat the tray more even and accurate than standard heating mats.
Equip 2 drawers with plugs to be removable
'+380

In order to be able to switch from 4 to 6 or from 6 to 8 shelves, add 2 plugs to remove shelves.
Equip all drawers with plugs to be removable
'+960

In order to be able to easily remove all the shelves for different height or for cleaning, choose this option.
All drawers in special steel 316
'+490

Get all drawers in SS316.
All drawers and shelves in special steel 316
+1700

Get all drawers and the shelves in SS316.

QUICKFREEZE OPTION

No quickfreeze option
'+0
12 ventilators for air movement inside the chamber
'+1900

DEFROST

Regular defrost with 1x2000 Watt heating mat
Additional defrost with 1x200 Watt, total power 4000 Watt
+280
Hot Gas Bypass valve - defrost additional to mat
'+1750

The Hot Gas Bypass valves enable the machine to use the cooling system for heating up after the cylcle to defrost. They can run for a maximum of 30 minutes and produce lots of heat near the ice.

TUBE

Regular anodized aluminum coating
'+0
Special steel tube SS304
+4300

Get the tube and closures in the back as well as flanges in SS304.

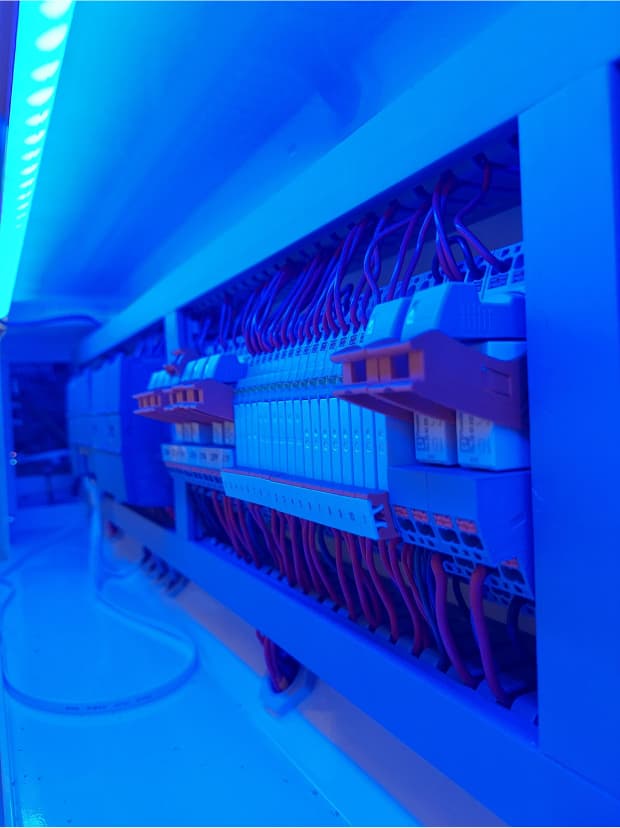

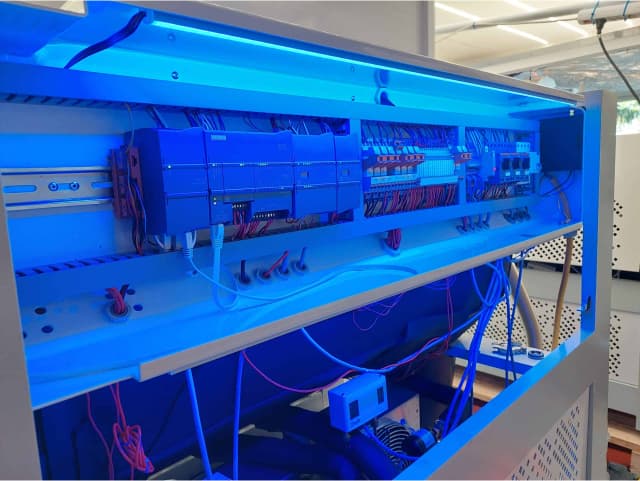

PLC & ELECTRONICS

Module for internet connectivity MQTT based
'+900
Lights indicating current state of machine
'+280

The machine will be equiped with lights on both sides which indicate the status:
-blue for working
-red for error
-white for ready
-green for almost done
High security switches
+670

These high security switches give extra safety to avoid uncontrolled heating of matts due to relais failure. This is recommended for customers working with very expensive material.
Energy counter
'+150

This module will keep track of the energy used for the machine, it measures directly the phase and gives a very precise measurement.
Phases indicator
'+55

This module shows if the phases to the machine are on, its recommended for easy service information to identify issues fast.
Light inside the vacuum chamber
'+350

SCIENTIFIC EXTRAS

Feedthrough for USB connection
+350
Feedthrough for additional 4 cables 0,75mm2
'+160
Feedthrough for additional 8 cables 0,75mm2
'+260
Feedthrough for additional 12 cables 0,75mm2
'+380
Extra 2 PT100 temperature sensors
'+120

For your experimental application, add 2 PT100 sensors.
Extra 4 PT100 temperature sensors
'+200

For your experimental application, add 4 PT100 sensors.
Extra 8 PT 100 temperature sensors
'+340

For your experimental application, add 8 PT100 sensors.

Pump Connection

Standard connection with 700mm flexible steel hose
'+0

700mm flexible stainless steel pipe KF25 or KF40 depending on your configuration; including clamps and rings.
Upgrade to 1000mm flexible steel hose
'+80

1000mm flexible stainless steel pipe KF25 or KF40 depending on your configuration; including clamps and rings.
Upgrade to 1500mm flexible steel hose
'+220

1500mm flexible stainless steel pipe KF25 or KF40 depending on your configuration; including clamps and rings.
Add manual regular valve KF25
'+85
Add manual regular valve KF40
'+115
Add automated regular valve
'+180

Available in KF16, KF25 and KF40.
Add automated high vacuum valve
'+450

This automated valve maximizes the efficiency of your freeze dryer, available in KF25 and KF40.

Pump

Upgrade to new Edwards M228m3 vacuum oil pump
+4200

EM series pumps are rugged mechanical oil-sealed pumps with speeds of 18 and 28 m3/hr. They feature advanced lubrication circuits and high reliability.
Upgrade to new Wave M24 24m3 vacuum oil pump
'+2850

Wave M24 24m3

2-stage rotary vane pump with excellent performance and low noise emition including oil filter (without oil feed to the pump).
Upgrade to new Wave M36 36m3 vacuum oil pump
'+3200

Wave M36 36m3

2-stage rotary vane pump with excellent performance and low noise emition including oil filter (without oil feed to the pump).
Upgrade to new Wave M48 48m2 oil pump
+3900

Wave M48 48m3

2-stage rotary vane pump with excellent performance and low noise emition including oil filter (without oil feed to the pump).
Upgrade to new Edwards XDS15i scroll pump
'+5650

XDS dry scroll pumps have become industry standard when dry pumping is essential, proving to be a robust and clean vacuum pump solution in a range of applications.
Upgrade to Edwards XDS35i scroll pump (refurbished)
'+6200

nXDS is the latest generation of scroll pump offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise levels than other pumps.
Upgrade to Edwards XDS46i scroll pump (refurbished)
+8900
No pump
'-1200
Replace pump with an automated valve
'-980

FEET/ WHEELS

Improved rubber feet (4 pcs)
'+120
Wheels (4pcs)
'+260
High weight wheels (4 pcs)
'+680

Transport & more

Express order within 8 weeks
'+3600

Choose this option to receive your machine within 8 weeks. We will fly the chassis and order all parts necessary express to our factory. From here, depending on your location, we will deliver by truck or sea.
Super express order within 5 weeks
'+7200

Choose this option to receive your machine within 8 weeks. We will fly the chassis and order all parts necessary express to our factory. From here we will deliver via airfreight.
Full Service Custom Brokerage for USA

A United States based custom broker will take care of important duties as well as all the paperwork, delivery will be arranged to your front door.

Warranty & Service & Remote Packs

1 Year extra warranty
'+800

Extent our one year warranty with another year including support via email and whatsapp.
2 Years extra warranty
'+1400

Extent our one year warranty with another 2 years including support via email and whatsapp.
3 Years extra warranty
'+2100

Extent our one year warranty with another 3 years including support via email and whatsapp.
On site introduction to the machine (Europe & USA)
'+890
On site introduction to the machine (Asia, Africa, South America, Middle east)
'+1790
Small service pack
'+380

-1 heating matt outside 2000W
-1 heating matt inside 600W
-1 Multimeter
-1 Digital thermometer
-6 KF16 rings
-6 KF16 shells
-6 KF25 rings
-6 KF25 shells
-6 KF40 rings
-6 KF40 shells
-2meters soft blue isolation
-1 blue ring
-1 door lock
-washers for door adjustment
-4 feet
-1 roll armaflex
-10 relais
-1 extra HEPA filter
-2 extra PT100 sensors
-1 USB stick
-2 full relais
-1 10 meter CAT6 Cable
Full service pack including tools
'+1850

-1 heating matt outside 2000W
-1 heating matt inside 600W
-1 multimeter
-1 digital thermometer
-6 KF16 rings
-6 KF16 shells
-6 KF25 rings
-6 KF25 shells
-6 KF40 rings
-6 KF40 shells
-4 meters soft blue isolation
-2 blue rings
-1 door lock
-washers for door adjustment
-4 feet
-2 rolls armaflex
-10 Relais
-1 extra HMI
-1 extra sensor replacement
-1 extra 24 Volt power supply
-1 extra HEPA filter
-2 extra PT100 sensors
-1 USB Stick
-2 full relais
-1 10 meter CAT6 cable

3RD PARTY RECIPES

Drypro all berries programm
120

Drypro offers a great programm for drying berries of all kind in the fastest and most aroma conserving way.
Quickdry for smoothies and pastes
50

Quickdry enables you to get the best results when drying smoothies.

TECHNICAL DATA

Extraction capacity
60 KG
Drawer loading volume
192 liters
Surface (8 drawers)
3.85 m2
Surface tray
600 mm x 400 mm (Euro Standard)
Compartments
Optional from 1 to 12
Tray material
Anodized aluminum or stainless steel
Cooling capacity
3 kW
Heating capacity
Up to 400 watt/drawer
Current load
Max 9 kW
Condensation temperature
-40 C
Maximum vacuum
50 mTorr
Time to max. vacuum
20 minutes
Pump
Refurbished Edwards RV28 or stronger
Evacuate
Electromagnetic
Door closing mechanism
Mechanical
De-icing
Electric
De-icing time
20 minutes
Monitor

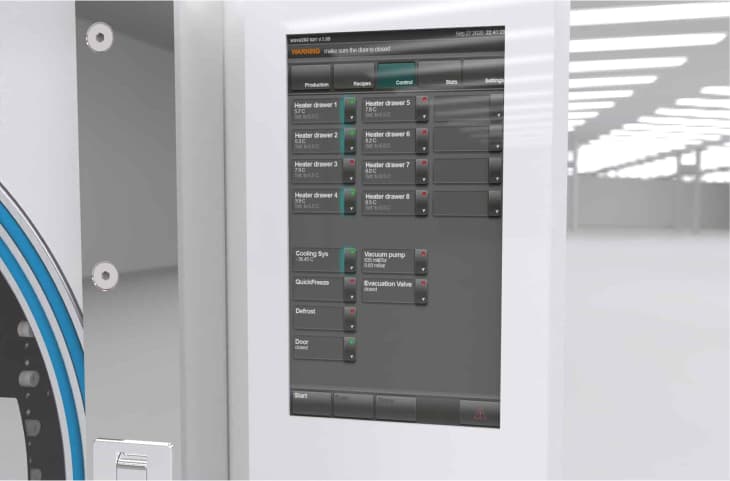

10" HD color touchscreen
Control system
SIEMENS simatic
Connectivity
Ethernet
Door
40 mm acrylic
Vacuum chamber
Extruded aluminum 7mm
Valkuum chamber surface
Hard anodized 25u
Front panel
Powder-coated
Total weight
430 KG
Electricity EU Version
400V/3/N
Electricity US Version
240V/1/N (120V/2/N)
Size (L x W x H)
89 cm x 140 cm x 130 cm

DOWNLOAD FD440 TECHNICAL DESCRIPTION
