Starting Price:19900€
Extraction Capacity
Loading Volume
Energy Consumption
No separate evacuation valve
+0Manual evacuation valve
+115
A manual evacuation valve is especially helpful for evacuation with powders of very light materials, to prevent them to fly around in the chamber after drying.

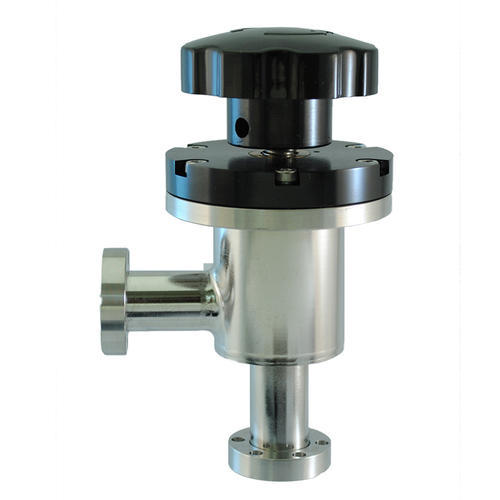

High vacuum evacuation valve
+320
A manual evacuation valve is especially helpful for evacuation with powders of very light materials, to prevent them to fly around in the chamber after drying. This evac has a very low leak rate and is for customers that need very low pressure for drying.
Hepa filter for evacuation
+75
When using a manual evacuation valve, add a hepa filter to make sure the air that is drawn into your material is clean.
No nitrogen generator

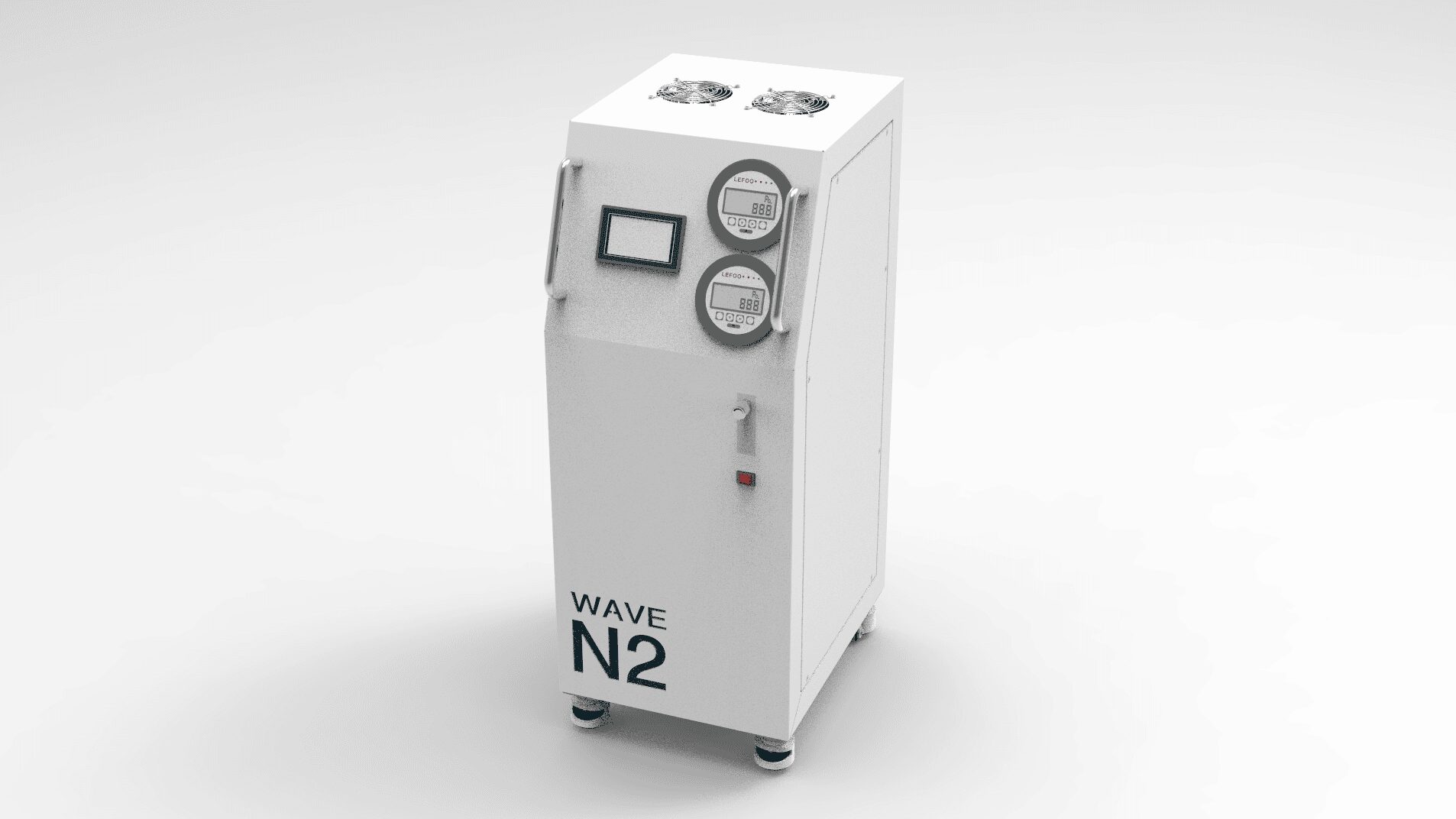

+0Nitrogen generator for 2x flooding / 24h
+7200
Some applications, such as citrus fruits, need to be evacuated (and packed) with nitrogen, to avoid oxidation. This generator can provide 600Liters of 98% nitrogen per 24h, to be used for evacuation.
Nitrogen generator for 4x flooding /24h
+9150
Some applications, such as citrus fruits, need to be evacuated (and packed) with nitrogen, to avoid oxidation. This generator can provide 1200 Liters of 98% nitrogen per 24h, to be used for evacuation.
4 drawers option
-280
Use only 4 drawers for very large items to dry, such as flowers. The height of each shelve is 85 mm.
6 drawers option
+0
Use 6 drawers for many items, and everything that can be easily staked, such as rolling fruits or berries. The height of each shelve is 55 mm.
8 drawers option standard
'+0
This is our standard configuration, it has lots of surface and works with most cut fruits, berries and vegetables, herbs and many more items. The height of each shelve is 35 mm.
All heaters made in Kapton
+1680
Kapton is a very durable and very thin material that is easy to clean and does not take on dirt or smell easily. The heaters which are placed between sheets of Kapton have excellent heat dispersing qualities and would heat the tray more even and accurate than standard heating mats.

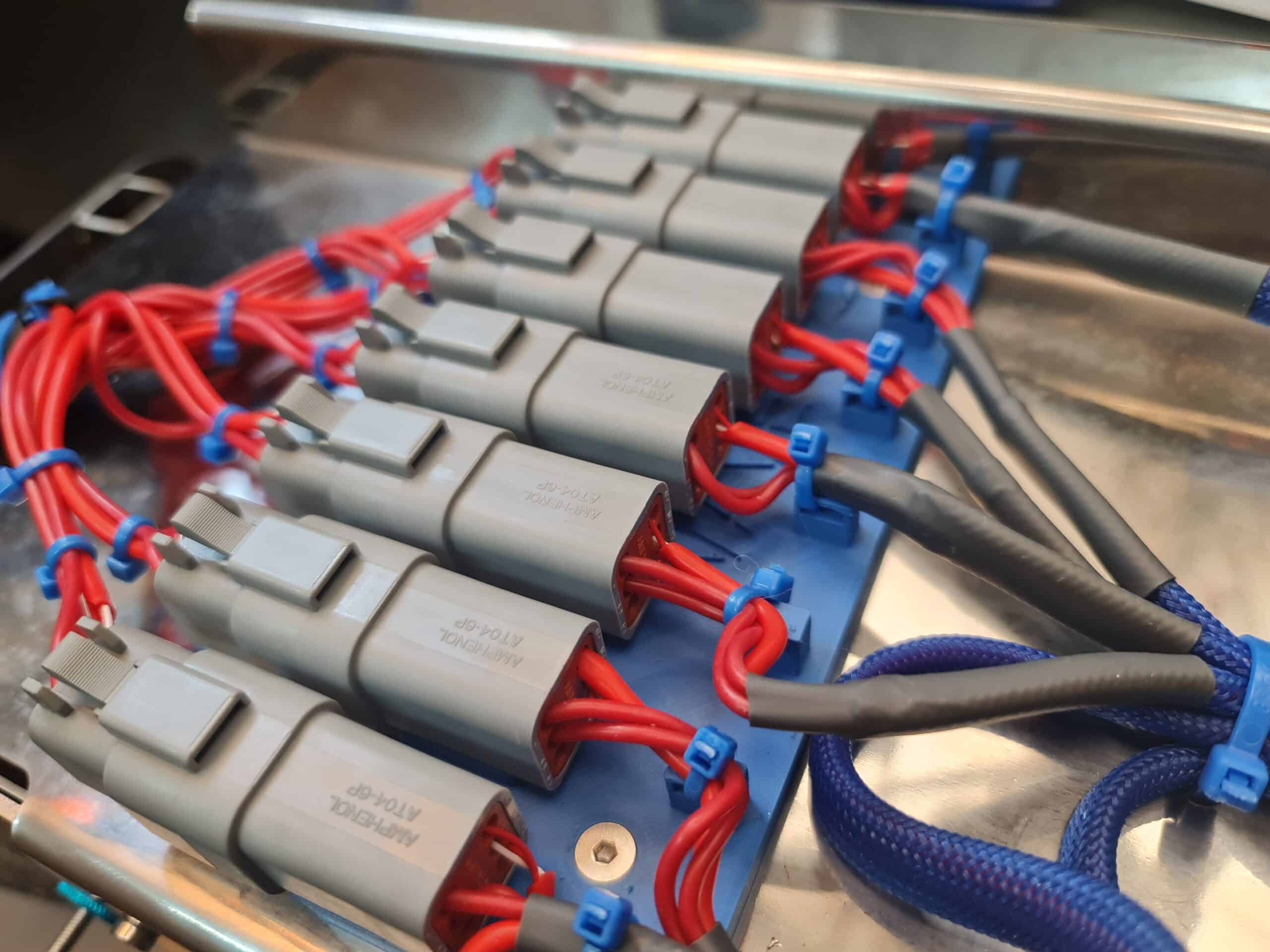

Equip 2 drawers with plugs to be removable
'+380
In order to be able to switch from 4 to 6 or from 6 to 8 shelves, add 2 plugs to remove shelves.
Equip all drawers with plugs to be removable
'+960
In order to be able to easily remove all the shelves for different height or for cleaning, choose this option.
All drawers in special steel 316
'+290
Get all drawers in SS316.
All drawers and shelves in special steel 316
+1200
Get all drawers and the shelves in SS316.
No quickfreeze option
'+012 ventilators for air movement inside the chamber
'+1900Regular defrost with 1x2000 Watt heating mat

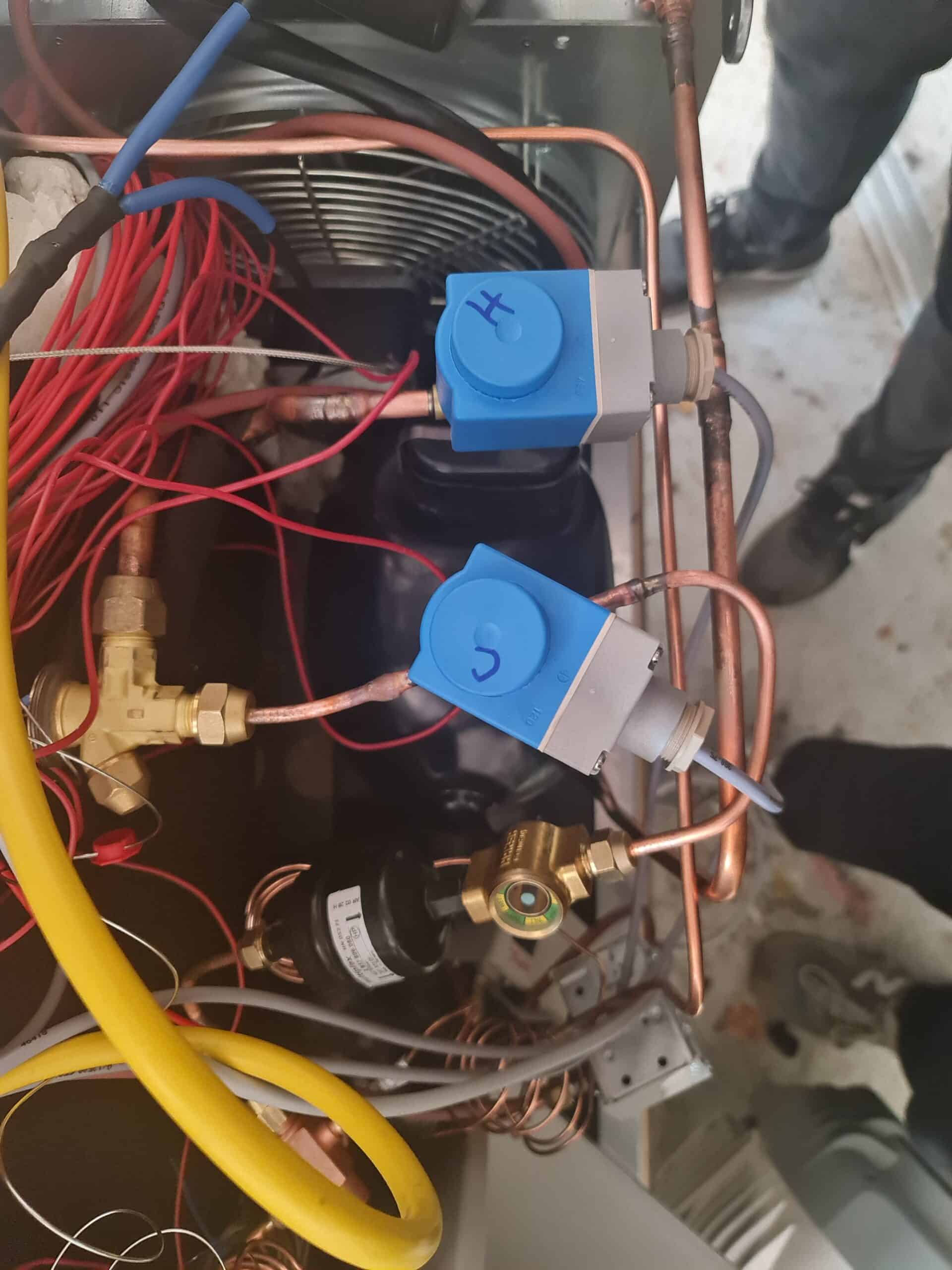

+0Hot Gas Bypass valve - defrost additional to mat
'+1750
The Hot Gas Bypass valves enables the machine to use the cooling system for heating up after the cylcle to defrost. They can run for a maximum of 30 minutes and produce lots of heat near the ice.
Regular anodized aluminum coating
'+0Special steel tube SS304
+4300
Get the tube and closures in the back as well as flanges in SS304.
Module for internet connectivity MQTT based
'+450Lights indicating current state of machine
'+280
The machine will be equiped with lights on both sides which indicate the status:
-blue for working
-red for error
-white for ready
-green for almost done
Siemens Sirius module for pump
'+90
If you wish a motorbreaker with feedback to the PLC for your vacuum pump, choose this option.
High security switches
+670
These ABB safety switches avoid the risk of switches to stuck in on state, this is recommended for very high value materials
Energy counter
'+150
This module will keep track of the energy used for the machine, it measures directly the phase and gives a very precise measurement.
Phases indicator
'+55
This module shows if the phases to the machine are on, its recommended for easy service information to identify issues fast.
Light inside the vacuum chamber
'+350Feedthrough for USB connection
+350Feedthrough for additional 4 cables 0,75mm2
'+160Feedthrough for additional 8 cables 0,75mm2
'+260Feedthrough for additional 12 cables 0,75mm2
'+380Extra 2 PT100 temperature sensors
'+120
For your experimental application, add 2 PT100 sensors.
Extra 4 PT100 temperature sensors
'+200
For your experimental application, add 4 PT100 sensors.
Extra 8 PT 100 temperature sensors
'+340
For your experimental application, add 8 PT100 sensors.
No add ons
'+0Silicone mats for all drawers
'+402x silicone cover mats for all drawers

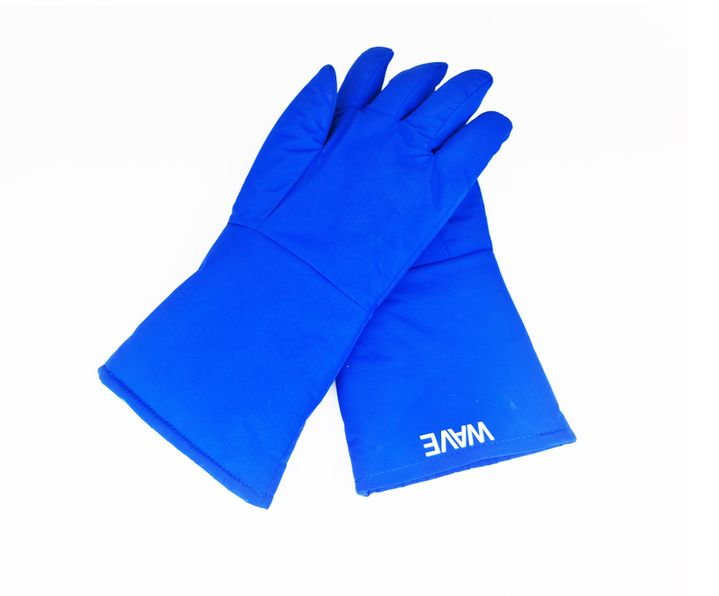

'+60Cryogloves 1x
'+35
One set of cryogloves to handle extremely cold material, ideal to handle material between freezer or shockfroster and the freezedryer.
Cryogloves 2x
'+60
One set of cryogloves to handle extremely cold material, ideal to handle material between freezer or shockfroster and the freezedryer.
5 Liter of Wave 19Q oil for vacuum oil pumps
'+90
Waves own high performance vacuum oil for our and other manufacturers pumps.
20 Liter of Wave 19Q oil for vacuum oil pumps
'+350
Waves own high performance vacuum oil for our and other manufacturers pumps.
Set of 4 extra trays anodized aluminium (850x350mm)
'+200
Set of 6 extra trays anodized aluminium (850x350mm)
'+300
Set of 8 extra trays anodized aluminium (850x350mm)
'+400Set of 12 extra trays anodized aluminium (850x350mm)
'+550Set of 16 extra trays anodized aluminium (850x350mm)
'+700Set of 4 extra trays ss304 (850x350mm)
'+230Set of 6 extra trays ss304 (850x350mm)
'+330Set of 8 extra trays ss304 (850x350mm)
'+480Set of 12 extra trays ss304 (850x350mm)
'+650Set of 16 extra trays ss304 (850x350mm)
'+850Standard connection with 700mm flexible steel hose
'+0
700mm flexible stainless steel pipe KF25 or KF40 depending on your configuration; including clamps and rings.
Upgrade to 1000mm flexible steel hose
'+80
1000mm flexible stainless steel pipe KF25 or KF40 depending on your configuration; including clamps and rings.
Upgrade to 1500mm flexible steel hose
'+220
1500mm flexible stainless steel pipe KF25 or KF40 depending on your configuration; including clamps and rings.

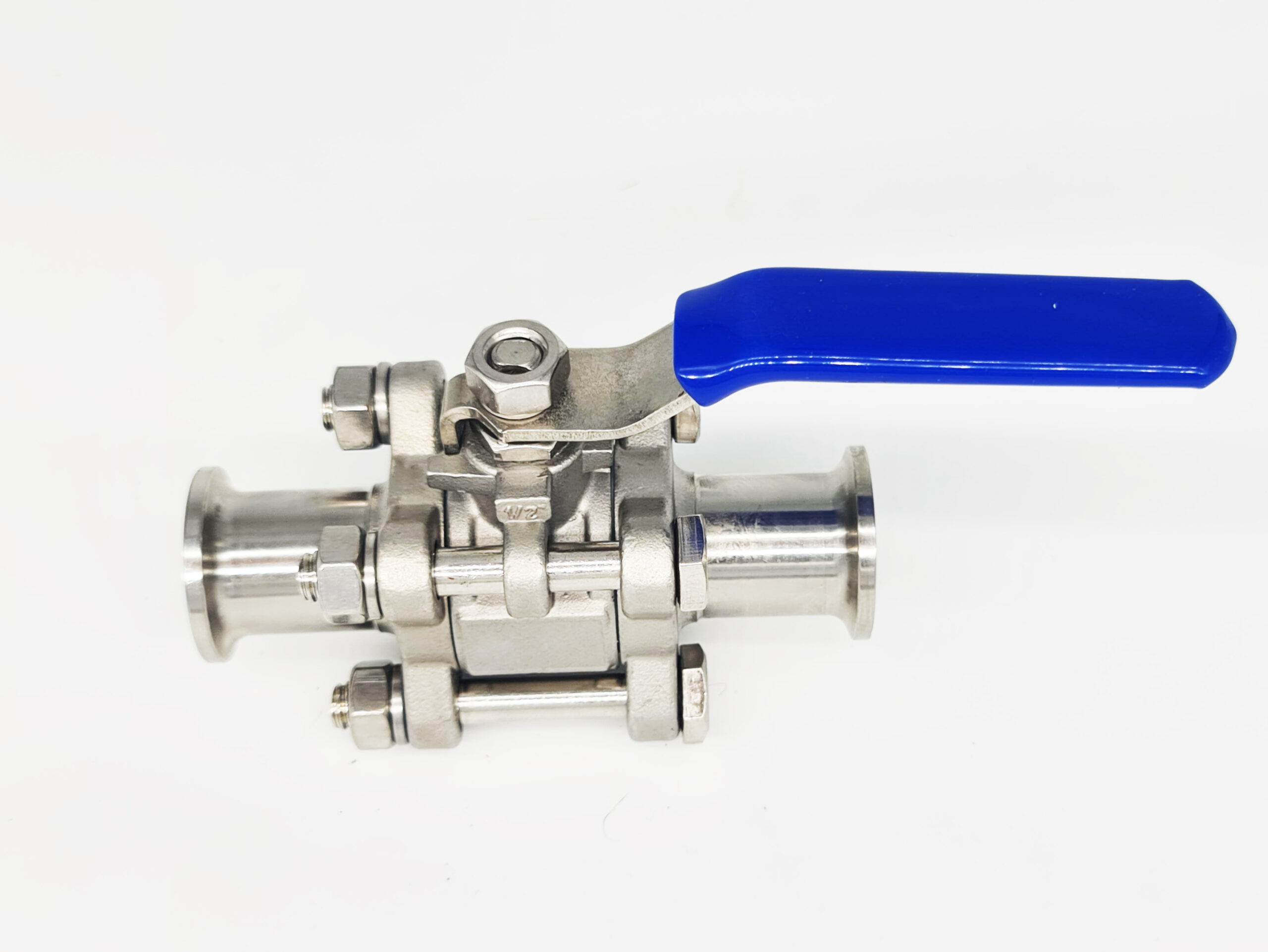

Add manual regular valve KF25
'+85
Add manual regular valve KF40
'+115
Add automated regular valve
'+180
Available in KF16, KF25 and KF40.
Add automated high vacuum valve
'+450
This automated valve maximizes the efficiency of your freeze dryer, available in KF25 and KF40.
Edwards M218m3 vacuum pump (refurbished)
'+0
EM series pumps are rugged mechanical oil-sealed pumps with speeds of 18 and 28 m3/hr. They feature advanced lubrication circuits and high reliability.
Upgrade to new Edwards M218m3 vacuum oil pump
'+2900
EM series pumps are rugged mechanical oil-sealed pumps with speeds of 18 and 28 m3/hr. They feature advanced lubrication circuits and high reliability.
Upgrade to Edwards M228m3 vacuum pump (refurbished)
+1400
EM series pumps are rugged mechanical oil-sealed pumps with speeds of 18 and 28 m3/hr. They feature advanced lubrication circuits and high reliability.
Upgrade to new Edwards M228m3 vacuum oil pump
+4200
EM series pumps are rugged mechanical oil-sealed pumps with speeds of 18 and 28 m3/hr. They feature advanced lubrication circuits and high reliability.

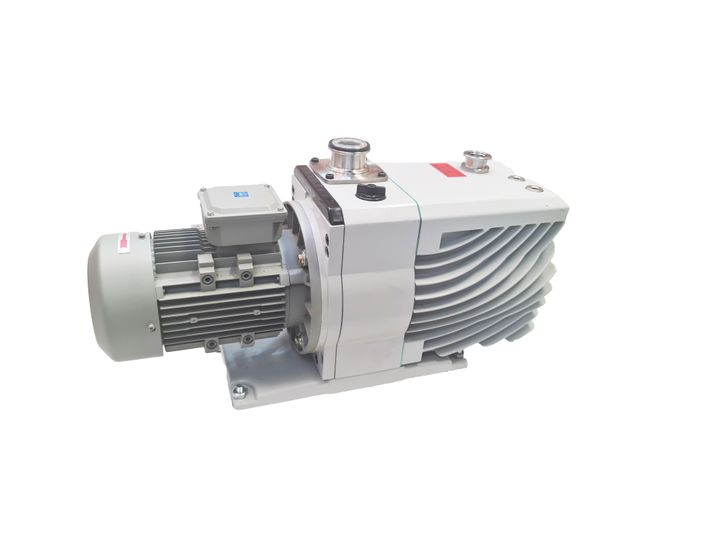

Upgrade to new Wave M24 24m3 vacuum oil pump
'+2850
Wave M24 24m3
2-stage rotary vane pump with excellent performance and low noise emition including oil filter (without oil feed to the pump).
Upgrade to new Wave M36 36m3 vacuum oil pump
'+3200
Wave M36 36m3
2-stage rotary vane pump with excellent performance and low noise emition including oil filter (without oil feed to the pump).

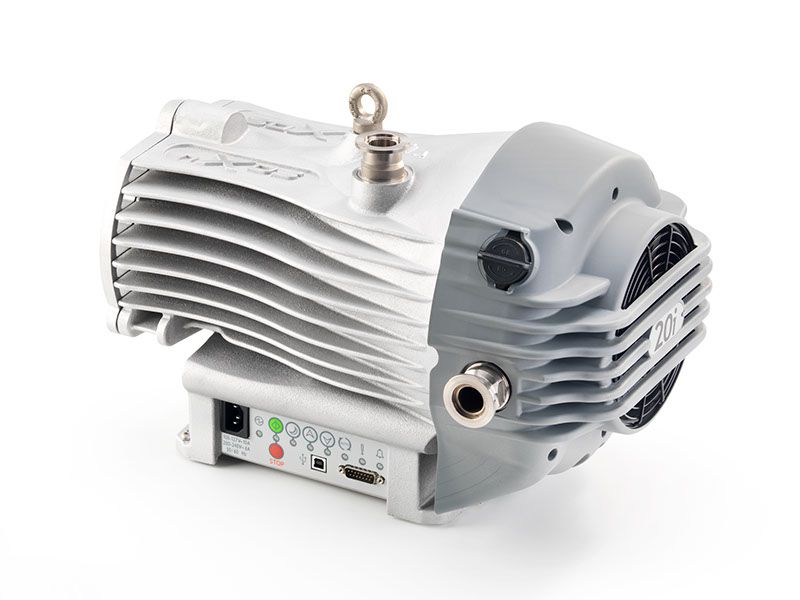

Upgrade to new Edwards XDS15i scroll pump
'+5650
XDS dry scroll pumps have become industry standard when dry pumping is essential, proving to be a robust and clean vacuum pump solution in a range of applications.

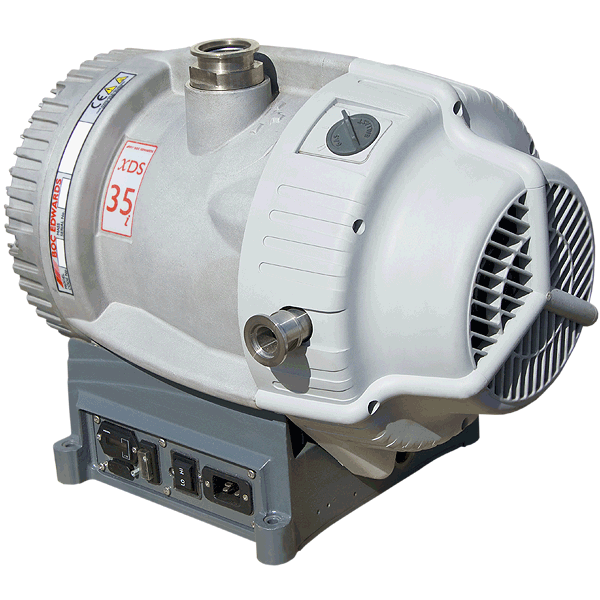

Upgrade to Edwards XDS35i scroll pump (refurbished)
'+6200
nXDS is the latest generation of scroll pump offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise levels than other pumps.
No pump
'-1200Replace pump with an automated valve
'-980Improved rubber feet (4 pcs)
'+120
Wheels (4pcs)
'+260
EM series pumps are rugged mechanical oil-sealed pumps with speeds of 18 and 28 m3/hr. They feature advanced lubrication circuits and high reliability.
High weight wheels (4 pcs)
'+680
EM series pumps are rugged mechanical oil-sealed pumps with speeds of 18 and 28 m3/hr. They feature advanced lubrication circuits and high reliability.
Full Service Custom Brokerage for USA
+2800
A United States based custom broker will take care of important duties as well as all the paperwork, delivery will be arranged to your front door.
Express order within 8 weeks
'+3600
Choose this option to receive your machine within 8 weeks. We will fly the chassis and order all parts necessary express to our factory. From here, depending on your location, we will deliver by truck or sea.
Super express order within 5 weeks
'+7200
Choose this option to receive your machine within 5 weeks. We will fly the chassis and order all parts necessary express to our factory. From here we will deliver via airfreight.
1 Year extra warranty
'+450
2 Years extra warranty
'+1200
3 Years extra warranty
'+2750
Small service pack
+380
-1 heating matt outside 2000W
-1 heating matt inside 600W
-1 Multimeter
-1 Digital thermometer
-6 KF16 rings
-6 KF16 shells
-6 KF25 rings
-6 KF25 shells
-6 KF40 rings
-6 KF40 shells
-2meters soft blue isolation
-1 blue ring
-1 door lock
-washers for door adjustment
-4 feet
-1 roll armaflex
-10 relais
-1 extra HEPA filter
-2 extra PT100 sensors
-1 USB stick
-2 full relais
-1 10 meter CAT6 Cable
Full service pack including tools
+1850
-1 heating matt outside 2000W
-1 heating matt inside 600W
-1 multimeter
-1 digital thermometer
-6 KF16 rings
-6 KF16 shells
-6 KF25 rings
-6 KF25 shells
-6 KF40 rings
-6 KF40 shells
-4 meters soft blue isolation
-2 blue rings
-1 door lock
-washers for door adjustment
-4 feet
-2 rolls armaflex
-10 Relais
-1 extra HMI
-1 extra sensor replacement
-1 extra 24 Volt power supply
-1 extra HEPA filter
-2 extra PT100 sensors
-1 USB Stick
-2 full relais
-1 10 meter CAT6 cabl
On site introduction to the machine (Europe & USA)
'+890
On site introduction to the machine (Asia, Africa, South America)
'+1790
Drypro all berries programm
120
Drypro offers a great programm for drying berries of all kind in the fastest and most aroma conserving way.
Quickdry for smoothies and pastes
50
Quickdry enables you to get the best results when drying smoothies.
Extraction capacity
25 KGDrawer loading volume
115 litersSurface (8 trays)
2.8 m2Surface tray
1000 mm x 350 mmCompartments
Optional from 1 to 12Tray material
Anodized aluminum or stainless steelCooling capacity
1.5 KWHeating capacity
Up to 400 Watt/drawerCurrent load
Max 6.5 KWCondensation temperature
-40 CMaximum vacuum
50 mTorrTime to max. vacuum
20 minutesPump
Refurbished Edwards RV18 or strongerEvacuate
ElectromagneticDoor closing mechanism
MechanicalDe-icing
ElectricDe-icing time
20 minutesMonitor
10" HD color touchscreenControl system
SIEMENS simaticConnectivity
EthernetDoor
40 mm acrylicVacuum chamber
Extruded aluminum 7mmValkuum chamber surface
Hard anodized 25uFront panel
Powder-coatedTotal weight
310 KGElectricity EU Version
400V/3/NElectricity US Version
240V/1/N (120V/2/N)Size (L x W x H)
127,5 cm x 93,5 cm x 71 cm
