WAVE
starting price
149000€
Compartments
Extraction Capacity
Surface

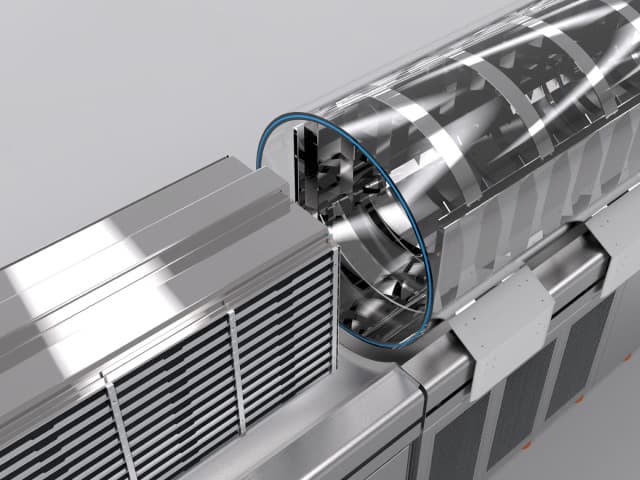

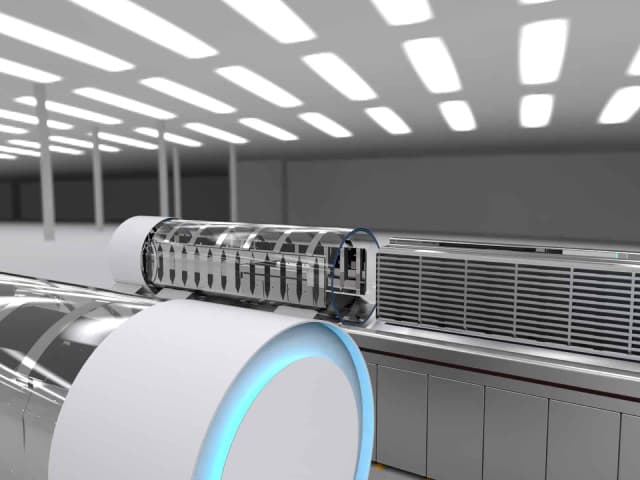

The SL990 uses a sliding transparent vacuum chamber to make a way to collect the ice and to make use of it for the next batch of production, reducing energy usage up to 40%.
The SL990 uses industrial vacuum technology. It only uses top branded material such as a Blitzer compressor, Siemens controller, Leantech rails, Edwards pumps and more. The device is manufactured in our factory in Vienna.
Wave has its headquarters in Austria. We supply and support customers throughout Europe. The SL990 is equipped with remote maintenance. Spare parts are always available. We also have a service center in the US that serves our US customers.

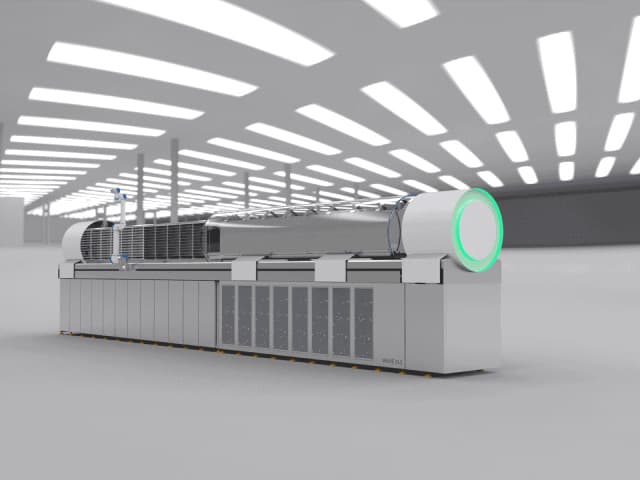

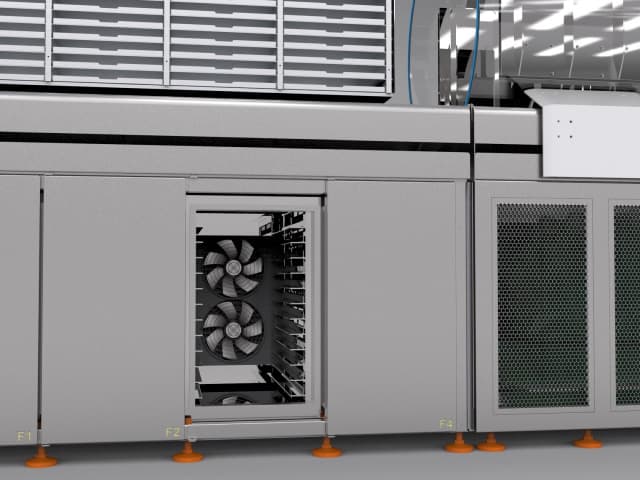

The SL990 features a completely new design and approach to freeze drying. The drawers can be accessed from the side. The lower part of the machine is a shockfroster. You can quickly load from the shockfroster to the machine without losing valuable time. Defrosting is faster and cleaner compared to any other machine and the ice is reused to save energy on the next batch.
Our goal is to offer the best price-performance ratio for freeze dryers. The price is 169,000 USD, leasing with one of our partners is also available.
No nitrogen generator
'+0
Nitrogen generator for 2x flooding / 24h
'+17200
Nitrogen generator for 4x flooding /24h
'+19150
4 drawers option
'-1280
6 drawers option
'-420
8 drawers option standard
'+0
12 drawers option standard
'+0
No weighting option
'+0
4 weight sensors to record the weight in and out including SIWARESWP231 Module
'+3900
Module for Internet connectivity based on MQTT
'+900
Siemens Sirius module for each pump outlet
'+270
Energy counter
'+150
Phases indicator
'+55
Feedthrough for USB connection
'+350
Feedthrough for additional 4 cables 0,75mm2
'+160
Feedthrough for additional 8 cables 0,75mm2
'+260
Feedthrough for additional 12 cables 0,75mm2
'+380
Extra 2 PT100 temperature sensors
'+120
Extra 4 PT100 temperature sensors
'+200
Extra 8 PT 100 temperature sensors
'+340
No add ons
'+0
Silicone mats for all drawers
'+160
2x silicone mats for all drawers
'+250
Cryogloves 1x
'+35
Cryogloves 2x
'+60
5 Liter of Wave 19Q oil for vacuum oil pumps
'+90
20 Liter of Wave 19Q oil for vacuum oil pumps
'+350
Set of 9 extra trays anodized aluminium (600x400mm)
'+420
Set of 18 extra trays anodized aluminium (600x400mm)
'+900
Set of 36 extra trays anodized aluminium (600x400mm)
'+1700
Set of 72 extra trays anodized aluminium (600x400mm)
'+3800
Set of 144 extra trays anodized aluminium (600x400mm)
'+7400
Set of 9 extra trays ss304 (600x400mm)
'+460
Set of 18 extra trays ss304 (600x400mm)
'+1050
Set of 36 extra trays ss304 (600x400mm)
'+1900
Set of 72 extra trays ss304 (600x400mm)
'+4050
Set of 144 extra trays ss304 (600x400mm)
'+8200
Standard connection with 2000mm flexible steel hose
'+0
Upgrade to 3000mm flexible steel hose
'+60
Upgrade to 4000mm flexible steel hose
'+220
Add manual regular valve
'+185
Add automated regular valve
'+280
Add automated high vacuum valve
'+750
3 x new Wave M36 36m3 vacuum oil pump
'+0
2x Edwards XDS46 scroll pump (oil-free) (refurbished)
'+19500
1x Edwards Drystar80 (refurbished)
'+7500
No Pump
'-5200
Express order within 20 weeks
'+14600
Super express order within 10 weeks
'+27200
1 Year extra warranty
'+4800
2 Years extra warranty
'+8500
3 Years extra warranty
'+11900
On site introduction to the machine (europe & USA)
'+0
On site introduction to the machine (Asia, Africa, Southamerica)
'+0
One small service pack
'+1700
One full service pack including tools
'+3200
Extraction capacity
250 KG
Drawer loading volume
800 liters
Surface
17,3 m2
Surface tray
600 mm x 400 mm (EURO Standard)
Compartments
72
Tray material
Anodized aluminum or stainless steel
Cooling capacity
11 kW
Heating capacity
200 watt/drawer
Current load
Max 25 kW
Condensation temperature
-45 C
Maximum vacuum
30 mTorr
Time to max. vacuum
Min. 15 minutes
Recommended Pump
Edwards Drystar 80
Evacuate
Electromagnetic
Door closing mechanism
Mechanical
De-icing
Hot Gas Bypass + electric
De-icing time
20 minutes
Monitor
10" HD color touchscreen
Control system
SIEMENS simatic
Connectivity
Ethernet/Wifi
Door
Special steel sliding /Wave patent
Vacuum chamber material
Acrylic glass 30mm
Shock froster
72 drawers
Total weight
4800 KG
Electricity EU Version
(according to need)
Electricity US Version
(according to need)
Size (L x H x W)
7500 x 1800 x 1100 mm
