Build & Price

Get Quote

SL770

Starting Price:119000€

48

Compartments

150 KG

Extraction Capacity

11,5 m2

Surface

TECHNICAL DETAILS

Quality

The SL770 uses industrial vacuum technology. It only uses top branded material such as a Blitzer compressor, Siemens controller, Leantech rails, Edwards pumps and more. The device is manufactured in our factory in Vienna.

Service

Wave has its headquarters in Austria. We supply and support customers throughout Europe. The SL770 is equipped with remote maintenance. Spare parts are always available. We also have a service center in the US that serves our US customers.

Productivity

The SL770 features a completely new design and approach to freeze drying. The drawers can be accessed from the side. The lower part of the machine is a shockfroster. You can quickly load from the shockfroster to the machine without losing valuable time. Defrosting is faster and cleaner compared to any other machine and the ice is reused to save energy on the next batch.

Costs

Our goal is to offer the best price-performance ratio for freeze dryers. The price is 135,500 USD, leasing with one of our partners is also available.

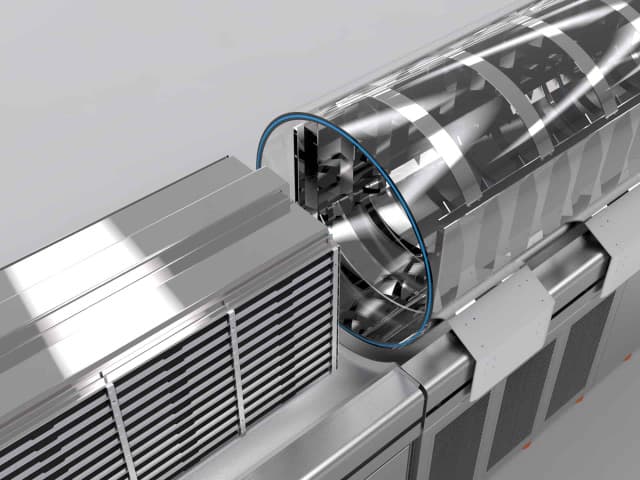

The SL770 uses a sliding transparent vacuum chamber to make a way to collect the ice and to make use of it for the next batch of production, reducing energy usage up to 40%.

NITROGEN

No nitrogen generator
'+0
Nitrogen generator for 2x flooding / 24h
'+17200

No Description Yet
Nitrogen generator for 4x flooding /24h
'+19150

No Description Yet

DRAWERS

4 drawers option
'-1280

Use only 4 drawers for very large dry goods, such as flowers. The height of each tray is 85 mm.
6 drawers option
'-420

Use 6 drawers for many items and anything that can be easily stacked, such as rolling fruit or berries. The height of each compartment is 55 mm.
8 drawers option standard
'+0

This is our standard configuration, it provides plenty of surface area and is suitable for most cut fruits, berries and vegetables, herbs and many other materials.
12 drawers option standard
'+0

No Description Yet

WEIGHTING OPTION

No weighting option
'+0
4 weight sensors to record the weight in and out including SIWARESWP231 Module
'+3900

With this option you can get data from weighing the store unit (as a whole), the result is +/- 100 grams, it is useful only for documentation, not for the drying process.

PLC

Module for Internet connectivity based on MQTT
'+900
Siemens Sirius module for each pump outlet
'+270

No Description Yet
Energy counter
'+150

This module tracks the energy consumed for the machine, it directly measures the phase and provides a very accurate measurement.
Phases indicator
'+55

This module indicates whether the phases of the machine are switched on. It is recommended for simple service information to quickly detect problems.

SCIENTIFIC EXTRAS

Feedthrough for USB connection
'+350
Feedthrough for additional 4 cables 0,75mm2
'+160
Feedthrough for additional 8 cables 0,75mm2
'+260
Feedthrough for additional 12 cables 0,75mm2
'+380
Extra 2 PT100 temperature sensors
'+120

For your experimental application, add 2 PT100 sensors.
Extra 4 PT100 temperature sensors
'+200

For your experimental application, add 4 PT100 sensors.
Extra 8 PT 100 temperature sensors
'+340

For your experimental application, add 8 PT100 sensors.

Pump Connection

Standard connection with 2000mm flexible steel hose
'+0

2000mm flexible stainless steel pipe KF25 or KF40, depending on configuration; including clamps and rings.
Upgrade to 3000mm flexible steel hose
'+60

3000mm flexible stainless steel pipe KF25 or KF40, depending on configuration; including clamps and rings.
Upgrade to 4000mm flexible steel hose
'+220

4000mm flexible stainless steel pipe KF25 or KF40, depending on configuration; including clamps and rings.
Add manual regular valve KF25
'+115
Add manual regular valve KF40
'+185
Add automated regular valve
'+280
Add automated high vacuum valve
'+750

Pump

3 x new Wave M36 36m3 vacuum oil pump
'+0
2x Edwards XDS46 scroll pump (oil-free) (refurbished)
'+19500
1x Edwards Drystar80 (refurbished)
'+7500
No Pump
'-5200

Transport

Express order within 20 weeks
'+14600

Choose this option to receive your machine within 20 weeks. We will fly in the metal chassis and order all the necessary parts by express to our factory. From here we will deliver by truck or ship depending on your location.
Super express order within 10 weeks
'+27200

Choose this option to receive your machine within 10 weeks. We will fly in the metal chassis and order all the necessary parts by express to our factory. From here we will deliver by truck or ship depending on your location.

Warranty & Service & Remote Packs

1 Year extra warranty
'+4800
2 Years extra warranty
'+8500
3 Years extra warranty
'+11900
On site introduction to the machine (europe & USA)
'+0
On site introduction to the machine (Asia, Africa, Southamerica)
'+0
One small service pack
'+1700
One full service pack including tools
'+3200

TECHNICAL DATA

Extraction Capacity
150 KG
Drawer loading volume
530 liters
Surface
11,5 m2
Surface tray
600 mm x 400 mm (EURO Standard)
Compartments
48
Tray material
Anodized aluminum or stainless steel
Cooling capacity
11 kW
Heating capacity
200 Watt/drawer
Current load
Max 20 kW
Condensation temperature
-45 C
Maximum vacuum
30 mTorr
Time to max. vacuum
Min. 15 minutes
Recommended Pump
Edwards Drystar 80
Evacuate
Electromagnetic
Door closing mechanism
Mechanical
De-icing
Hot Gas Bypass + electric
De-icing time
20 minutes
Monitor
10" HD color touchscreen
Control system
SIEMENS simatic
Connectivity
Ethernet/Wifi
Door
Special steel sliding /Wave patent
Vacuum chamber material
Acrylic glass 30mm
Shock froster
48 drawers
Total weight
3500 KG
Electricity EU Version
(according to need)
Electricity US Version
(according to need)
Size (L x H x W)
5500 x 1800 x 1100 mm

DOWNLOAD SL770 TECHNICAL DESCRIPTION

Download Description

FD260

Starting Price:€19,900.00

FD260 complete with 8 compartments (standard version) as well as an refurbished 2-stage oil pump; Edwards E2M18.

25 Kg

Extraction Capacity

115 liters

Loading Volume

1.5 KW/h

Energy Consumption

Learn More
